Understanding Magnafluxing: A Comprehensive Guide to the Process and Its Applications

Learn everything you need to know about magnafluxing from the experts at SkyGeek. Understand the magnafluxing process, some of the applications and the benefits of the technique.

Magnafluxing is a non-destructive testing (NDT) technique that is commonly used in various industries, including but not limited to: automotive, aerospace and manufacturing. Magnafluxing is often used to detect surface and subsurface defects in ferromagnetic materials. The process involves executing a series of steps that disperse iron oxide particles across a magnetic field, highlighting leaks and other defects. This article provides a comprehensive overview of the magnafluxing process, its applications and the benefits.

What Is Magnafluxing?

Magnafluxing, also known as magnetic particle inspection (MPI), is a type of NDT that uses magnetic fields and iron oxide particles to detect cracks, porosity, laps, seams and other surface and subsurface defects in ferromagnetic materials. Ferromagnetic materials are those that contain iron, nickel or cobalt, and can be magnetized. It 's important to note that magnafluxing only works on materials that can be magnetized.

The magnafluxing process involves the following steps:

1. Cleaning the surface of the material to be inspected to remove any dirt, oil or other contaminants. Contamination could impede the magnafluxing process.

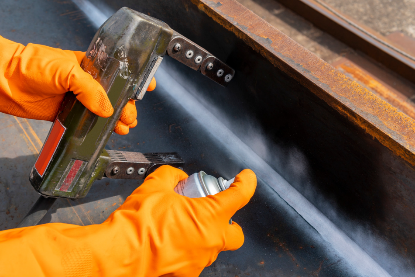

2. Applying a magnetic field to the material by passing an electric current through it or by using a permanent magnet.
3. Spraying iron oxide particles (magnetic particles) onto the surface of the material, which are attracted to any areas of magnetic flux leakage caused by surface or subsurface defects.
4. Inspecting the surface of the material under ultraviolet (UV) light to reveal any indications of defects.

Applications of Magnafluxing

• Magnafluxing is most commonly used in manufacturing and automotive industries. It is done during the inspection process and can be used to detect leaks, cracks or surface imperfections. Magnafluxing is commonly used in various industries to inspect critical components such as engine blocks, gears, shafts, pipelines and welds. Some of the applications of magnafluxing include:

• Automotive Industry: Magnafluxing is used to inspect engine blocks, cylinder heads and other critical components for defects that may lead to engine failure.
• Aerospace Industry: Magnafluxing is used to inspect aircraft engines, landing gears and other critical components for defects that may compromise safety.
• Manufacturing Industry: Magnafluxing is used to inspect welds, castings and forgings for defects that may affect the quality and performance of the final product.

Benefits of Magnafluxing

There are many benefits of using magnafluxing versus other inspection techniques. When inspecting engine parts or storage tanks, for example, a non-damaging inspection technique may be important. Cost is another factor that's also taken into consideration as well as reliability. Magnafluxing is considered superior to many other NDT techniques because it offers several benefits, including:

• Non-Destructive Testing: Magnafluxing is a non-destructive testing technique that does not damage the material being inspected.
• Cost-Effective: Magnafluxing is a relatively low-cost method of detecting surface and subsurface defects compared to other NDT methods.
• High Sensitivity: Magnafluxing can detect very small surface and subsurface defects that may not be visible to the naked eye. Even small imperfections that other testing methods may miss are detected.
• Fast and Reliable: Magnafluxing can be performed quickly and provides reliable results.

Conclusion

Magnafluxing is an essential NDT technique that is widely used in various industries to detect surface and subsurface defects in ferromagnetic materials. The process is cost-effective, non-destructive and provides reliable results. By understanding the magnafluxing process and its applications, you can make informed decisions about when and where to use this valuable NDT technique.
