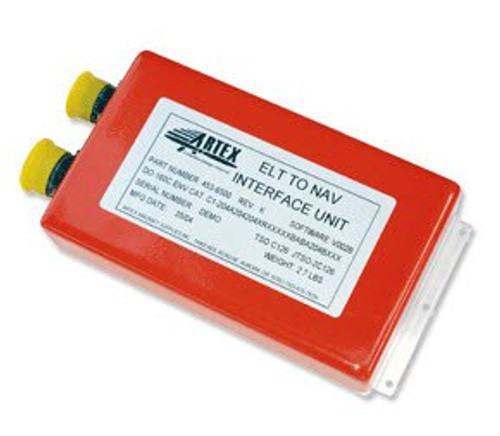

ACR Artex™ 453-6500 ELT to Nav Interface Main Assembly

ACR Artex™ 453-6500 ELT to Nav Interface Main Assembly
Our Part #: SGP42970
Manufacture Part #: 453-6500
Our Price: $4,154.64
Price Per Each
Adding to cart… The item has been added

world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

The Artex 453-6500 ELT To Nav Interface is designed to be connected between the aircraft's Flight Management Computer (FMC) or GPS receiver and the 406 MHz series of ELTs (G406-4, C406-1, C406-2, C406-1 HM, C406-2 HM) to allow transmission of position data with the distress signal.

The knowledge of the position (to 1 meter) allows Search & Rescue forces to launch an immediate mission to the last known position of the aircraft. The ELT/NAV Interface meets TSO C126 and JTSO-2C126 requirements, as a 406 MHz ELT system component. When properly registered, use of this technology can provide the following information to Search & Rescue teams: 1)Type of Aircraft; 2) Owner(s); 3) Emergency Contact(s); 4) Country Code; 5) Aircraft ID or Serial Number of ELT; 6) ELT Manufacturer; and 7) Latitude/Longitude Position.

An advanced feature of the Interface is the ability to custom program the ELT to the "24-bit Address" (Mode S Number) assigned to an aircraft. This is extremely useful for fleet operators who change-out ELTs because it eliminates the need to re-program an ELT before it is installed in to a different aircraft.

Features

  • Compatible with systems such as:
    Garmin
    UNSD
    ARNAV
    IIMorrow
    Bendix King
  • Unit Weight: 2.7 lbs (1.2 kg)
  • Measurements: 9.25 x 5 x 1.95 inches
  • Vibration: 10 G (5 Hz to 2000 Hz)
  • Shock Test: 500 G @ 4 Milliseconds
  • Crash Worthiness: 100 G @ 23 Milliseconds
  • Altitude: 50,000 feet
  • Humidity: 95% for 48 hours
  • Impact: 220 PSI (25 kg from 6 inches)
  • Crush: 1000 lbs
  • Auto Reprogramming: 24 Bit Aircraft Address (Mode S Number)
  • ARINC 429 Interface: ARINC 429 ALL
  • RS-232 Interface:
    9600 Baud
    Parity: None
    Data Bits: 8
    Stop Bits: 1
    STX and ETX required
    "A" identifier for latitude
    "B" identifier for longitude
  • NAV Systems: GPS-Loran-Inertial NAV-FMC
  • Operating Temperature: -20°C to +55°C
  • Voltage Requirements: +28VDC +/- 5VDC
  • Current Draw: 300 mA Max
  • Part Number Complete Kit: 455-6500 (includes installation kit)
  • Approvals: ETSO 2C126, TSO C126
  • Country of Origin
    United States
    Shipping Weight
    5 pounds
    ECCN
    7A994
    Manufacturer P/N
    453-6500
    Schedule B Code
    8529.90.9540
    Pack Quantity
    1
