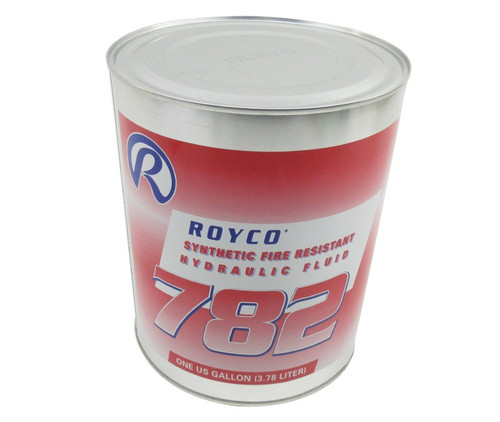

ROYCO® 782 Red MIL-PRF-83282D Spec Synthetic Fire Resistant Aircraft Hydraulic Fluid - Gallon Can

ROYCO® 782 Red MIL-PRF-83282D Spec Synthetic Fire Resistant Aircraft Hydraulic Fluid - Gallon Can
Our Part #: SGP74497
Manufacture Part #: 58323430
Our Price: $76.22
Price Per Each

Bulk Shop & Save

  • 6 - 11 $75.13 ea.
  • 12 - 23 $74.08 ea.
  • 24 - 35 $73.05 ea.
  • 36 + $72.05 ea.
In-Stock: 17 Units available.
Need More? Current lead time is 89-92 business days.
Adding to cart… The item has been added

world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

ROYCO 782 is a red – colored "Super Clean", synthetic hydraulic fluid developed to meet the severe duty demands of today's military and industrial equipment. Modern additive technology is employed for oxidative stability, corrosion inhibition, and antiwear protection. ROYCO 782 is compatible with petroleum-based fluids and all components used in mineral oil type hydraulic systems.

ROYCO 782 is intended for use in severe duty applications requiring both low and high temperature operation, extended time periods between service intervals, excellent shear stability, water demulsibility, and the safety factor afforded by the use of a synthetic fluid. ROYCO 782 is recommended for use in aircraft, missile, and ordnance systems using synthetic sealing materials as well as in heavy-duty construction equipment, and industrial robotic hydraulic systems. ROYCO 782 is suitable for use in applications operating at temperatures from -40°C to 205°C. This product is especially recommended for use where the high flash point provides added safety margins.

Approvals/References/Specs

  • NATO Specification: H-537
  • US Military Specification: MIL-PRF-83282D Amend 1
  • US Military Specification: MIL-H-83282
  • ROYCO 782 meets the requirements of and is qualified to MIL-SPEC: MIL-PRF-83282D Am 1, NATO Code Number H-537.

    Property Test Method Royco 782
    Kinematic Viscosity, cSt
    @ 205°C ASTM D445 1.08
    @ 100°C ASTM D445 3.51
    @ 40°C ASTM D445 14.2
    @ -40°C ASTM D445 2027
    Low Temperature Stability, -40°C, 72 hours FTM 3458 pass
    Flash Point, °C (°F) ASTM D92 218 (424)
    Fire Point, °C (°F) ASTM D92 251 (483)
    Pour Point, °C (°F) ASTM D97 -61 (-77)
    Neutralization No., mq KOH/g ASTM D664 0.03
    Barium Content, ICP-AES, ppm ASTM D5185 0
    Specific Gravity, (15.6°C) ASTM D1298 0.852
    Gravimetric Filtration, mg ASTM D4898 0.1
    Water Content, ppm ASTM D6304 65
    Evaporation, 205°C, 6.5 hours, % loss FTM 350 10.5
    Lubricity, 4-Ball Wear, scar diameter, mm
    1 Kg, 1200 RPM, 1 hour, 75°C ASTM D4172 0.14
    10 Kg, 1200 RPM, 1 hour, 75oC ASTM D4172 0.21
    40 Kg, 1200 RPM, 1 hour, 75oC ASTM D4172 .44
    API Gravity ASTM D4052 0.44
    Solid Particle Contamination, auto counter Filtration time, min
    5-15 mμ FTM 3009 722
    16-25 mμ FTM 3009 95
    26-50 mμ FTM 3009 27
    51-100 mμ FTM 3009 4
    100+ mμ FTM 3009 0
    Foam Characteristics, 25°C, ml 5 min /10 min ASTM D892 4/0

    Downloads

    download icon Safety Data Sheet

    Country of Origin
    United States
    Size
    Gallon
    Shipping Weight
    11 pounds
    ECCN
    1C996
    Color Family
    Red
    Manufacturer P/N
    ROYCO 782
    Schedule B Code
    3819.00.0000
    Pack Quantity
    1
    Ship Dimensions
    7 x 7 x 8 inches
    Size
    Gallon Can
    Spec
    MIL-PRF-83282D
    Color
    Red
    NSN
    9150-01-419-0969
    MIL-SPEC#
    MIL-PRF-83282D
    Alternate PN#s
    4055789
