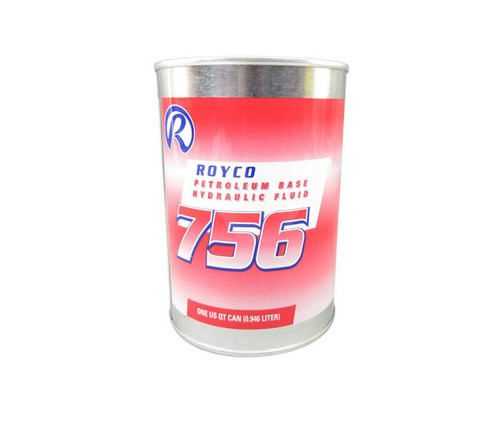

ROYCO® 756 Red MIL-PRF-5606H Amend. 3 Spec Mineral Oil Based Aircraft Hydraulic Fluid - Quart Can

ROYCO® 756 Red MIL-PRF-5606H Amend. 3 Spec Mineral Oil Based Aircraft Hydraulic Fluid - Quart Can
Our Part #: SGP114589
Manufacture Part #: 58323206
Our Price: $17.08
Price Per Each

Bulk Shop & Save

  • 24 - 47 $16.82 ea.
  • 48 - 71 $16.57 ea.
  • 72 - 95 $16.32 ea.
  • 96 + $16.08 ea.
In-Stock: 90 Units available.
Need More? Current lead time is 89-92 business days.
Adding to cart… The item has been added

world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

ROYCO 756 is a red-dyed, mineral oil based hydraulic fluid developed for the severe duty demands of aerospace and industrial service. ROYCO 756 contains additives that provide excellent low temperature fluidity as well as exceptional anti-wear, oxidation / corrosion inhibition, and shear stability. In addition, metal deactivators and foam inhibitors are provided in this high viscosity index fluid to enhance performance in many general purpose hydraulic applications.

Approvals/References/Specs

  • US Military Specification: MIL-H-5606A
  • US Military Specification: MIL-H-5606G
  • US Military Specification: MIL-O-5606
  • US Military Specification: MIL-PRF-5606H
  • US Military Specification: AN-O-336
  • US Military Specification: AN-VV-O-336
  • US Military Specification: AAF-3580
  • Features

  • Wide operating temperature range
  • Low temperature fluidity
  • Exceptional anti-wear performance
  • "Super Clean" Fluid to improve equipment life
  • Excellent oxidation and corrosion inhibition
    Typical Properties Test Method Royco 756
    Kinematic Viscosity, cSt
    @ 100°C ASTM D445 5.28
    @ 40°C ASTM D445 14.30
    @ -40°C ASTM D445 473
    @ -54°C ASTM D445 2028
    Low Temperature Stability, -54°C, 72 hours FTM 3458 pass
    Pour Point, °C ASTM D97 -62
    Flash Point, COC, °F ASTM D92 231
    Acid Number, mq KOH/g ASTM D664 .04
    Density, pounds per gallon ASTM D287 7.261
    Copper Corrosion, 135°C, 72 hours, ASTM color ASTM D130 1B
    Water Content, ppm ASTM D6304 44.9
    4-Ball Wear, 75°C, 40 kg, 1200 rpm, 1 hour, mm ASTM D4172 .58
    Evaporation, 71°C, 6 hours, %wt loss ASTM D972A 10.4
    Gravimetric Filtration mg/100 ml, 0.45mu @ 25°C Para 4.4.3
    Barium Content, ppm ASTM D5185 1
    Foam Resistance, 75°F ASTM D892
    foam volume, ml 32
    foam stability none
    API Gravity ASTM D4052 30.8
    Micron Size, count / mL
    5-15 mμ FTM 3012 963
    16-25 mμ FTM 3012 120
    26-50 mμ FTM 3012 36
    51-100 mμ FTM 3012 5
    100+ mμ FTM 3012 1
    Water, Coulometric KF Titration, ppm ASTM D6304 45

    Downloads

    download icon Safety Data Sheet

  • Country of Origin
    United States
    Size
    Quart
    Shipping Weight
    3 pounds
    ECCN
    EAR99
    Color Family
    Red
    Manufacturer P/N
    ROYCO 756
    Schedule B Code
    2710.19.3080
    Pack Quantity
    1
    Ship Dimensions
    4 x 4 x 6 inches
    Size
    Quart Can
    Spec
    MIL-PRF-5606H Amendment 3
    Color
    Red
    NSN
    9150-00-252-6383
    MIL-SPEC#
    MIL-PRF-5606H Amendment 3
    Alternate PN#s
    4055742
