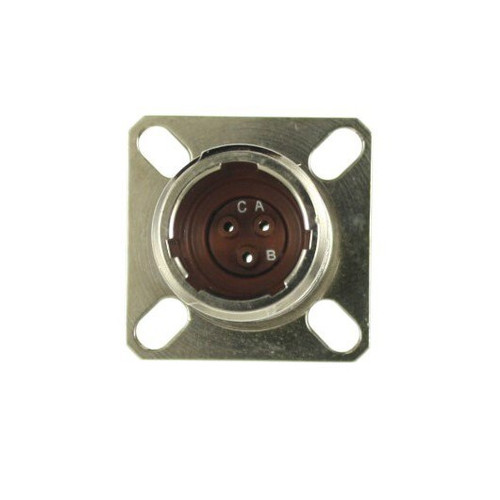

Military Specification D38999/20FA98PN Connector, Receptacle, Electrical

Our Part #: SGP107319
Manufacture Part #: D38999-20FA98PN
Our Price: $27.35 (Each)

Bulk Shop & Save

  • 12 + $25.52 Each
world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

  • Thread Class: 2A
  • Thread Direction: Right-Hand And Right-Hand
  • Iii Body Style: Straight Shape, External Coupling
  • Overall Length: 31.5 Millimeters Maximum
  • Overall Height: 23.8 Millimeters Nominal
  • Overall Width: 23.8 Millimeters Nominal
  • Environmental Protection: Moisture Proof And Salt Water Resistant And Vibration Proof
  • Unthreaded Mounting Hole Diameter: 3.3 Millimeters Minimum And 5.5 Millimeters Maximum
  • Center To Center Distance Between Mounting Facilities Parallel To Height: 15.1 Millimeters Minimum And 18.3 Millimeters Maximum
  • Distance Between Centerlines Of Mounting Facilities Parallel To Body Width: 15.1 Millimeters Minimum And 18.3 Millimeters Maximum
  • Distance From Mounting Shoulder To Front Face: 20.9 Millimeters Maximum
  • Threaded Device Type: Back Shell And Coupling Facility
  • Mating End Quantity: 1
  • Contact Position Arrangement Style: 9-98 Single Mating End
  • Contact Removability: Removable Single Mating End Single Contact Grouping
  • Polarization Method: Keyway Or Multiple Keyway
  • Insert Position In Deg: 0.0
  • Shell Type: Solid
  • Connector Locking Method: Externally Threaded Shell
  • Thread Quantity Per Inch: 10
  • Nominal Thread Size: 12.0 Millimeters And 0.625 Inches
  • Thread Pitch In Millimeters: 1.00
  • Terminal Location: Back Single Mating End Single Contact Grouping
  • Contact Material: Copper Alloy Single Mating End Single Contact Grouping
  • Contact Surface Treatment: Gold Single Mating End Single Contact Grouping And Silver Single Mating End Single Contact Grouping
  • Insert Material: Plastic Epoxy Single Mating End
  • Terminal Type: Crimp Single Mating End Single Contact Grouping
  • Shell Material: Aluminum Alloy
  • Shell Surface Treatment: Nickel
  • Shell Surface Treatment Document And Classification: Mil-C-26074 Mil Spec Single Treatment Response
  • Thread Tolerance Class: 6G External
  • Included Contact Quantity: 3 Single Mating End Single Contact Grouping
  • Included Contact Type: Round Pin Single Mating End Single Contact Grouping
  • Precious Material And Location: Contact Surfaces Gold And Contact Surfaces Silver
  • Precious Material And Weight: 0.015 Gold Grains, Troy And 0.015 Silver Grains, Troy
  • Precious Material: Gold And Silver
  • Test Data Document: 81349-Dod-C-38999 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Typedata On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.).
  • Thread Series Designator: Iso M
  • Specification/Standard Data: 81349-Dod-C-38999/20 Government Specification
  • Product Attributes

    Country of Origin
    United States
    Shipping Weight
    0.3 pounds
    ECCN
    9A991.d
    Manufacturer P/N
    D38999/20FA98PN
    Schedule B Code
    8538.90.7080
    Pack Quantity
    1
    Series
    D38999/20

    Other Part Numbers
