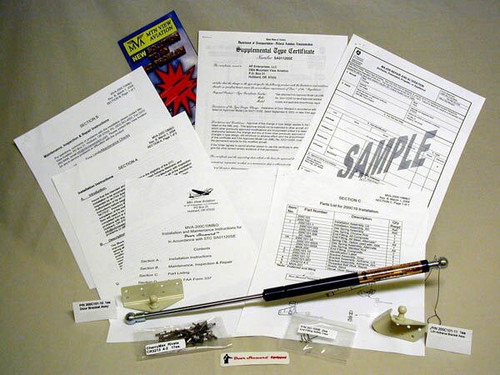

Door Steward 177C10-1 Cessna 177 & 177RG Left Cabin Doors Installation Kit

Our Part #: SGP18941
Manufacture Part #: 177C10-1-L-H
Our Price: $215.00 (Each)
INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

Description

The Door Steward™ for the Cessna Cardinal models 177 is a product improvement installation that greatly improves the operation of the aircraft doors. It is supplemental to the factory original stops. The installation consists of a gas spring attached to brackets mounted on the door and the airframe. When the door is unlatched the gas spring gently but firmly opens the door to or near the full open position, depending on the resistance of the original factory stops. The gas spring while in the open position protects the aircraft and occupants from unexpected openings and closings by providing resistance to considerably higher wind gusts and prop wash than the original stops. While the gas spring installation was designed to help control the inadvertent opening of the door in a tailwind, it is always advisable to avoid these tailwind situations or be prepared to assist the gas spring in limiting the opening speed. The gas spring is extremely simple and reliable. The weight of each door installation is 1.0 Lb. Closing the door compresses the gas spring. The gas spring can easily be removed from its brackets to facilitate removal of the aircraft door, replacement of a defective gas spring or to conduct other maintenance.

Product Attributes

Country of Origin
United States
Shipping Weight
3 pounds
ECCN
9A991.d
UOM
Each
Manufacturer P/N
177C10-1
Pack Quantity
1

Other Part Numbers

Features

Approved Cessna Model List:
  • 177, 177A, 177B
  • 177RG

SECTION C

Parts List for 177C10 Installation

Items NoPart NumberDescriptionQty Reqd


 177C10-1

Installation Assembly, LH

Ref.


 177C10-2

Installation Assembly, RH

Ref.
1

 . 177C101-1

Gas Spring Assembly

1


 . . 177C101-002

Gas Spring

1


 . . MVA-9001

End Fittings

2


 . . MVA-177

Identification Label

1
2

 .  MVA-9002

Safety Clips

2
3

 . 177C102-1

Bracket Assembly, Door, L/H

1


 . 177C102-2

Bracket Assembly, Door, R/H

1
4

 . 177C103-1

Bracket Assembly, Airframe

1
5

 . MVA-9003

Threaded Ball Stud, 5/16"-18

1
6

 . NAS1149F0532P

Washer, (AN960-516L)

1
7

 . MVA-9006-5

Nut, Fiber Self-Lock NC threads 5/16"-18

1
8

 . MVA-9004

Thread Ball Stud, 1/4"-20

1
9

 . NAS1149F0463P

Washer, (AN960-416)

1
10

 . MVA-9005-4

Nut, Thin, Fiber Self-Lock, NC Threads 1/4"-20

1
11

 . MVA-201

Decal, Door Steward Equipped

1
*

 . CR3213 4-4

Rivets, Blind

8
*

 . CR3213 4-4

Rivets, Blind

2
*

 . NAS603-18P

Screw, Arm Rest Bracket Attach 1 1/8"

2
