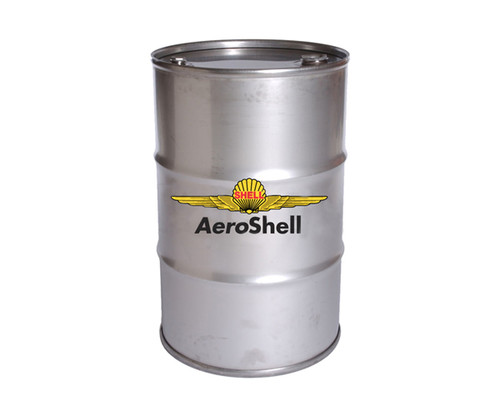

AeroShell™ Turbine Oil 500 Synthetic Turbine Engine Oil - 55 Gallon Drum

AeroShell™ Turbine Oil 500 Synthetic Turbine Engine Oil - 55 Gallon Drum
Our Part #: SGP162020
Manufacture Part #: 550042548
Price Per Each
Quote Item:
If you can wait, please 'Build A Quote' with the button below, and we will send you a quotation as soon as possible.

world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

AeroShell Turbine Oil 500 is a 5 centistoke synthetic hindered ester oil incorporating additives to improve thermal and oxidational stability and also metal passivation.

AeroShell Turbine Oil 500 was developed essentially to meet the requirements of Pratt & Whitney 521 B Type II and MIL -L-23699 specifications and is entirely suitable for all civil and military engines requiring this class of lubricant.

High Viscosity Index Synthetic Base Fluids used in AeroShell Turbine Oil 500 maintain viscosity and protect components more effectively under the high shear stresses that a turbine system places on lubricants.

The outstanding high temperature and oxidation stability of AeroShell Turbine Oil 500 is due to the natural properties of the synthetic hindered ester base fluids used. These fluids are clean running in that they tend to dissolve varnish and sludge rather than leave deposits on working surfaces.

Research and Development has enabled the most suitable selection of additive to be used in order to provide the excellent oxidation stability, superior load carrying and exceptional protection against high temperature corrosion of metals.

AeroShell Turbine Oil 500 is also approved for use in the industrial and marine versions of certain aero-engines listed. The land and sea based derivatives of the aero-engines retain the essential design elements of their aviation versions. Such designs place heavy demands on the components and lubricants to ensure total reliability in the high temperatures within the engine. Engine manufacturers, therefore, approve the use of aircraft synthetic turbine oils in their engines.

Approvals/References/Specification

  • Rolls-Royce Allison Specification: EMS-53
  • British Specification: DEF STAN 91-101 Grade OX-27
  • French Specification: equivalent DCSEA 299/A
  • Joint Service Designation Specification: OX-27
  • NATO Specification: O-156
  • Pratt & Whitney Specification: 521C Type II
  • Pratt & Whitney Specification: PMC 79873
  • Pratt & Whitney Canada Specification: PWC03-001
  • General Electric Specification: D-50 TF 1
  • SAE Specification: AS5780B Grade SPC
  • US Military Specification:MIL-L-23699
  • US Military Specification: MIL-PRF-23699G Grade STD
  • Features

    AeroShell Turbine Oil 500 is approved for use in all models of the following engines:
    • Pratt & Whitney JT3, JT4, JT9, JT12, PW 4000, PW 2000

    • Pratt & Whitney Canada JT15, PT6, ST6, PW100 series, PW901 APU

    • General Electric CT58, CF6, CF700, CJ610, CJ805, CF34, CT7, CT64

    • Lycoming T53, T55, AL5512, LTS101, LTP101 and all engines which specify MIL-L-23699 oil

    • Allison 250 series, 501D13, T56

    • Garrett TFE 731, TPE 331-1 to -12

    • Turbomeca Artouste, Larzac & other engines for which MIL-L-23699 oils are specified

    • Rolls-Royce RB183, RB211-22B, -524, -535, Tay, Gnome, Spey, Adour, M45H, Viper (Series MK301, 521, 522, 526, 535, 540, 601, 623 & 632.) Current status for Pegasus available on request.

    • IAE V2500

    • Motorlet M601D, E & Z

    • Industrial Versions

    • Rolls-Royce Avon

    • Allison 501K & 570K Lycoming TF35

    • Pratt & Whitney GG3/FT3, GG4/FT4, GG12/FT12

    • General Electric LM100, 250, 350, 1500 & 2500

    • Solar Saturn, Centaur, Mars engines

    • Turbomeca Industrial engines

  • Fatty Material Type: Any Acceptable
  • Basic Ingredient: Synthetic Base
  • Service Characteristics: Antifoam And Antiwear And Corrosion Resistive And High Temperature And Low Temperature And Oxidation Resistant
  • Quantity Within Each Unit Package: 7.500 Ounces, Fluid
  • Viscosity At Rated Temp: 25.00 Minimum 100 Deg Fahrenheit And 5.00 Minimum 210 Deg Fahrenheit And 5.50 Maximum 210 Deg Fahrenheit
  • Maximum Pour Point: -65.0 Deg Fahrenheit
  • Minimum Flash Point And Test Method: 475.0 Deg Fahrenheit Cleveland Open Cup
  • Country of Origin
    United States
    Size
    55 Gallon
    Shipping Weight
    520 pounds
    ECCN
    EAR99
    Manufacturer P/N
    550042548
    Schedule B Code
    2710.19.3080
    Pack Quantity
    1
    Size
    55 Gallon Drum
