Country of Origin
United States
Shipping Weight
2.75 pounds
Manufacturer P/N
CS-3201 Class B-1/2
Schedule B Code
3506.91.0000
Ship Dimensions
4.5 x 4.5 x 7 inches
Size
Quart (24 fl oz) Can Kit
Spec
AMS-S-7124B (no QPL)

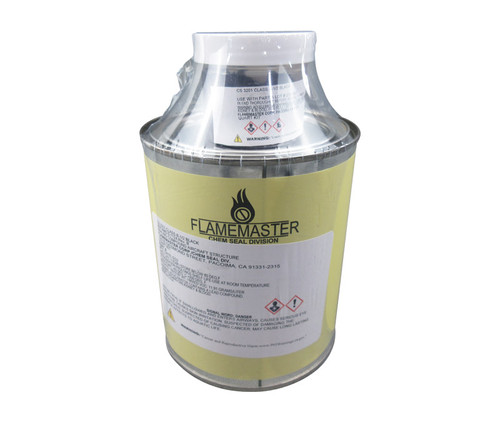

This two-part, polysulfide based compound cures at room temperature to a flexible, resilient rubber with excellent adhesion to aluminum, titanium, stainless steel, steel, magnesium, and other materials. Proper mixing is assured by the contrasting colors of the two parts. MCS 3201, Class B is a thixotropic paste which is easily applied with an extrusion gun or spatula, but will not flow from vertical or overhead surfaces. The cured sealant is resistant to aircraft fuels, lubricants, oils, water, and weather, and remains flexible at low temperatures.
Base Compound Color: White
Curing Agent Color: Brown
Color of Mixed Compound: Tan
Mixing Ratio (by weight): 100:10
Mixing Ratio (by volume): 100:7.5
Non Volatile Materal: 98%
Viscosity Base (Brookfield Spindle #7 @ 2 RPM): 11,000 poises
Application Time (Tack Free): 6 hrs.
Application Time (Cure 30REX): 30 hrs.
Specific Gravity: 1.45
Hardness Shore A: 30-50
Aluminum (bare): 45 lbs./in - 100%
Corrosion Resistance: Excellent
Resistance to Hydrocarbons: (Mil-S-3136 Type III Fuel) Excellent
Resistance to Fluids: Excellent resistance to water, alcohol, petroleum and synthetic lubricating oils, and petroleum based hydraulic oils
Radiation Resistance: 3 x 10^7 Roentgens - less than 25% change in tensile strength and elongation
Note: Values obtained from AMS7124 (withdrawn). Test protocol AS5127. All values observed are typical and the user should rely on their on testing as for suitability of purpose
