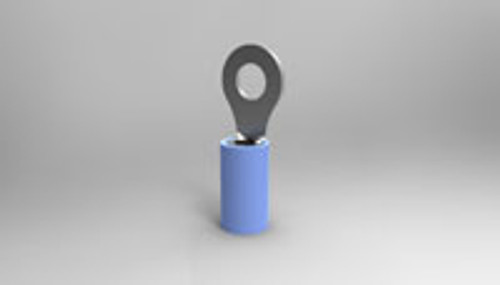

TE Connectivity 320560 Ring Tongue Terminal - AWG 16-14 - Insulation Max 3.81mm - Stud M4 - 25/Pack

TE Connectivity 320560 Ring Tongue Terminal - AWG 16-14 - Insulation Max 3.81mm - Stud M4 - 25/Pack
TE Connectivity 320560 Ring Tongue Terminal - AWG 16-14 - Insulation Max 3.81mm - Stud M4 - 25/Pack
TE Connectivity 320560 Ring Tongue Terminal - AWG 16-14 - Insulation Max 3.81mm - Stud M4 - 25/Pack
Our Part #: SGP33305-X25
Manufacture Part #: 320560
Our Price: $15.50
Price Per Pack - (Pack = 25 ea)
In-Stock: 11 Packs available in ± 2-3 business days
Need More? Current lead time is 37-40 business days.
Adding to cart… The item has been added

world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

Related Items

TE Connectivity 320575 Ring Tongue Terminal - AWG 16-14 - Insulation Max 3.81mm - Stud M8 - 25/Pack

TE Connectivity 320575 Ring Tongue Terminal - AWG 16-14 - Insulation Max 3.81mm - Stud M8 - 25/Pack

TE Connectivity 320575 Ring Tongue Terminal - AWG 16-14 - Insulation Max 3.81mm - Stud M8 - 25/Pack

> View Details
PART #: SGP33319-X25
MFR PART #: 320575
Our Price: $24.75
Adding to cart… The item has been added
Adding to cart… The item has been added
TE Connectivity 51864-1 Ring Tongue Terminal - AWG 16-14 - Insulation Max 2.67-3.81mm - Stud M4 - 100/Pack

TE Connectivity 51864-1 Ring Tongue Terminal - AWG 16-14 - Insulation Max 2.67-3.81mm - Stud M4 - 100/Pack

TE Connectivity 51864-1 Ring Tongue Terminal - AWG 16-14 - Insulation Max 2.67-3.81mm - Stud M4 - 100/Pack

> View Details
PART #: SGP49354-X100
MFR PART #: 51864-1
Our Price: $42.00
Adding to cart… The item has been added
Adding to cart… The item has been added
TE Connectivity 320563 Ring Tongue Terminal - AWG 16-14 - Insulation Max 3.81mm - Stud M6

TE Connectivity 320563 Ring Tongue Terminal - AWG 16-14 - Insulation Max 3.81mm - Stud M6

TE Connectivity 320563 Ring Tongue Terminal - AWG 16-14 - Insulation Max 3.81mm - Stud M6

> View Details
PART #: SGP33308
MFR PART #: 320563
Our Price: $0.47
Adding to cart… The item has been added
Adding to cart… The item has been added
TE Connectivity 320574 Ring Tongue Terminal - AWG 16-14 - Insulation Max 3.81mm - Stud 10

TE Connectivity 320574 Ring Tongue Terminal - AWG 16-14 - Insulation Max 3.81mm - Stud 10

TE Connectivity 320574 Ring Tongue Terminal - AWG 16-14 - Insulation Max 3.81mm - Stud 10

> View Details
PART #: SGP33318
MFR PART #: 320574
Our Price: $0.38
Adding to cart… The item has been added
Adding to cart… The item has been added
TE Connectivity 320565 Ring Tongue Terminal - AWG 16-14 - Insulation Max 2.92mm - Stud M4 - 10/Pack

TE Connectivity 320565 Ring Tongue Terminal - AWG 16-14 - Insulation Max 2.92mm - Stud M4 - 10/Pack

TE Connectivity 320565 Ring Tongue Terminal - AWG 16-14 - Insulation Max 2.92mm - Stud M4 - 10/Pack

> View Details
PART #: SGP33309-X10
MFR PART #: 320565
Our Price: $3.20
Adding to cart… The item has been added
Adding to cart… The item has been added
TE Connectivity 51864-2 Ring Tongue Terminal - AWG 16-14 - Insulation Max 2.67-3.81mm - Stud 10

TE Connectivity 51864-2 Ring Tongue Terminal - AWG 16-14 - Insulation Max 2.67-3.81mm - Stud 10

TE Connectivity 51864-2 Ring Tongue Terminal - AWG 16-14 - Insulation Max 2.67-3.81mm - Stud 10

> View Details
PART #: SGP49355
MFR PART #: 51864-2
Our Price: $0.48
Adding to cart… The item has been added
Adding to cart… The item has been added
TE Connectivity 322337 Ring Tongue Terminal - AWG 16-14 - Insulation Max 3.05-4.32 - Stud M4

TE Connectivity 322337 Ring Tongue Terminal - AWG 16-14 - Insulation Max 3.05-4.32 - Stud M4

TE Connectivity 322337 Ring Tongue Terminal - AWG 16-14 - Insulation Max 3.05-4.32 - Stud M4

> View Details
PART #: SGP33389
MFR PART #: 322337
Our Price: $5.06
Adding to cart… The item has been added
Adding to cart… The item has been added
TE Connectivity 51863 Ring Tongue Terminal - AWG 22-16 - Insulation Max 2.03-3.81mm - Stud M3.5

TE Connectivity 51863 Ring Tongue Terminal - AWG 22-16 - Insulation Max 2.03-3.81mm - Stud M3.5

TE Connectivity 51863 Ring Tongue Terminal - AWG 22-16 - Insulation Max 2.03-3.81mm - Stud M3.5

> View Details
PART #: SGP49353
MFR PART #: 51863
Our Price: $0.29
Adding to cart… The item has been added
Adding to cart… The item has been added
Description
The Tyco 320560 Ring Tongue Terminal is a closed barrel, ring tongue terminal for wires AWG 16-14. It has a Pre-Insulated Diamond Grip (PIDG) body made from copper with a tin finish, and wrapped in insulated blue nylon.

Features

Product Type Features:
  • Terminal Shape: Ring Tongue
  • Receptacle Style: Straight
  • Body Style: PIDG
  • Barrel Type: Closed Barrel
  • Wire/Cable Type: Regular Wire
  • Insulation: Yes
  • Insulation Support: Insulation Support
  • Insulation Diameter (mm [in]): 3.81 [.150] Max.
  • Stud Diameter (mm [in]): 4.17 [0.164]
  • Stud Size: 8 [M4]
  • Shape: RING-041
  • Heavy Duty: No
  • Material: Copper
  • Finish: Tin
  • Color: Blue
  • Insulation Material: Nylon

    • Electrical Characteristics:
  • Voltage (VAC): 300

    • Termination Features:
  • Wire/Cable Size (CMA): 2,050 – 5,180

    • Body Features:
  • Wire Range (mm [AWG]): 1.25-2.00² [16-14]
  • Tongue Material Thickness (mm [in]): 0.84 [0.033]

    • Industry Standards:
  • Government/Industry Qualification: No
  • RoHS/ELV Compliance: RoHS compliant, ELV compliant
  • Lead Free Solder Processes: Not relevant for lead free process
  • RoHS/ELV Compliance History: Always was RoHS compliant

    • Packaging Features:
  • Packaging Method: Loose Piece

    • Other:
  • Brand: AMP
    • Product Attributes
    Country of Origin
    United States
    Shipping Weight
    0.001 pounds
    ECCN
    9A991.d
    Manufacturer P/N
    320560
    Schedule B Code
    8803.30.0010
    Pack Quantity
    25
    Approvals and Conformities
