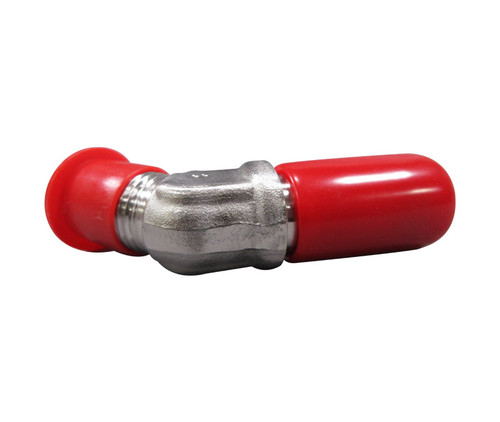

Aerospace Standard AS1040J0606 Stainless Steel 45° Elbow, Tube

Our Part #: SGP92014
Manufacture Part #: AS1040J0606
Our Price: $32.29 (Each)

Bulk Shop & Save

  • 6 - 11 $31.39 (Each)
  • 12 - 23 $30.55 (Each)
  • 24 - 35 $29.74 (Each)
  • 36 + $28.98 (Each)
world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

Approvals and Conformities

Approvals and Conformities

NSN
4730-00-062-2704

Product Attributes

Country of Origin
United States
Shipping Weight
0.14 pounds
ECCN
EAR99
Manufacturer P/N
AS1040J0606
Schedule B Code
7307.22.5000
Pack Quantity
1
  •  Thread Class:  3A 1St End Bulkhead
  •  Thread Class:  3A All Ends
  •  End Item Identification:  F-18 Aircraft
  •  Connection Style:  Flared (Tube) All Ends
  •  Leg Length:  1.672 Inches Nominal 1St End
  •  Leg Length:  0.828 Inches Nominal 2Nd End
  •  Connection Type:  Threaded External Tube 1St End Bulkhead
  •  Connection Type:  Threaded External Tube All Ends
  •  Nominal Thread Size:  0.562 Inches All Ends
  •  Nominal Thread Size:  0.562 Inches 1St End Bulkhead
  •  Seat Angle:  37.0 Degrees All Ends
  •  Flow Angle:  45.0 Degrees
  •  Nominal Outside Diameter Tube Accommodated:  0.375 Inches All Ends
  •  Material:  Steel Comp 304 Overall
  •  Material Document And Classification:  Qq-S-763 Fed Spec Single Material Response Overall
  •  Surface Treatment:  Passivate Overall
  •  Surface Treatment Document And Classification:  Mil-S-5002 Mil Spec Single Treatment Response Inside
  •  Surface Treatment Document And Classification:  Mil-F-14072,E300,Ty2 Mil Spec Single Treatment Response Outside
  •  Thread Series Designator:  Unjf 1St End Bulkhead
  •  Thread Series Designator:  Unjf All Ends
  •  Furnished Items And Quantity:  2 Tube Coupling Nut And 2 Flared Sleeve And 1 Bulkhead Nut
  •  Specification/Standard Data:  96906-MS24396 Government Standard
