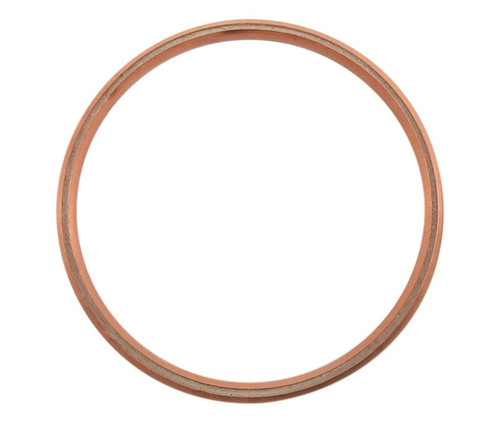

Military Standard MS35769-55 Copper Crush Gasket

Military Standard MS35769-55 Copper Crush Gasket
Military Standard MS35769-55 Copper Crush Gasket
Military Standard MS35769-55 Copper Crush Gasket
Military Standard MS35769-55 Copper Crush Gasket
Our Part #: SGP138308
Manufacture Part #: MS35769-55
Our Price: $16.94
Price Per Each

Bulk Shop & Save

  • 100 - 249 $16.66 ea.
  • 250 - 499 $16.39 ea.
  • 500 - 999 $16.13 ea.
  • 1000 + $15.88 ea.

world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

Related Items

Product Added to Cart Successfully

Approvals and Conformities

Approvals and Conformities

NSN
5330-01-354-7734
Alternate PN#s
AN900-32

Product Attributes

Country of Origin
United States
Shipping Weight
0.007 pounds
ECCN
9A991.d
Color Family
Copper
Manufacturer P/N
MS35769-55
Schedule B Code
7415.21.0000
Pack Quantity
1
Ship Dimensions
2 x 2 x 0 inches
Series
MS35769
Inside Diameter
2"
Outside Diameter
2 1/4"
Thickness
3/32"
Color
Copper
Material
Copper Alloy
MS35769 annular copper gaskets. Replaces AN900 and SAE-AS35769 gaskets. Ring width is 1/8"; thickness is 3/32".
MRC Parameter Characteristics
AAGR Cross-Sectional Shape Style F35 metal with soft filler
ABJH III Temp Rating 500.0 deg fahrenheit
ABKV Outside Diameter 2.234 inches minimum and 2.250 inches maximum
ABVL Aperture Diameter 2.000 inches minimum and 2.016 inches maximum
ADVM Cross-Sectional Thickness 0.078 inches minimum and 0.109 inches maximum
CRTL Criticality Code Justification MATT
CTQW III Maximum Pressure Rating 200.0 pounds per square inch
ENAC Environmental Attribute Code Asbestos alternative products
FEAT Special Features As differentiated by filler of non-asbestos material
MATT Material Document and Classification HH-G-101 fed spec single material response case HH-G-101, type 3 fed spec all material responses core
STYL Style Designator B1 circular
