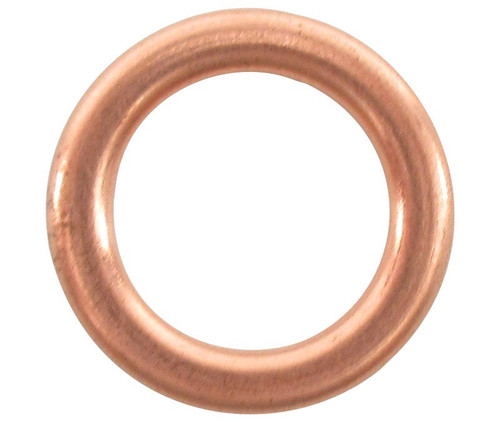

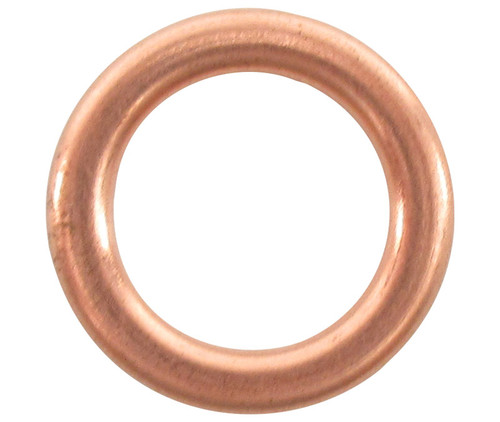

Military Standard MS35769-12 Copper Crush Gasket

Our Part #: SGP138285
Manufacture Part #: MS35769-12
Our Price: $1.47 (Each)

Bulk Shop & Save

  • 100 - 249 $1.44 (Each)
  • 250 - 499 $1.42 (Each)
  • 500 - 999 $1.40 (Each)
  • 1000 + $1.38 (Each)
world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

Approvals and Conformities

Approvals and Conformities

NSN
5330-01-354-6625

Product Attributes

Country of Origin
United States
Shipping Weight
0.001 pounds
ECCN
9A991.d
Color Family
Copper
Manufacturer P/N
MS35769-12
Schedule B Code
7415.21.0000
Pack Quantity
1
Series
MS35769
Inside Diameter
5/8"
Outside Diameter
1"
Thickness
5/64
Color
Copper
Material
Copper Alloy
MS35769 annular copper gaskets. Replaces AN900 and SAE-AS35769 gaskets. Ring width is 1/8"; thickness is 3/32".
MRC Parameter Characteristics
AAGR Cross-Sectional Shape Style F35 metal with soft filler
ABJH III Temp Rating 150.0 deg fahrenheit and 500.0 deg fahrenheit
ABKV Outside Diameter 0.984 inches minimum and 1.000 inches maximum
ABVL Aperture Diameter 0.625 inches minimum and 0.641 inches maximum
ADVM Cross-Sectional Thickness 0.062 inches minimum and 0.094 inches maximum
CRTL Criticality Code Justification MATT
CTQW III Maximum Pressure Rating 200.0 pounds per square inch
ENAC Environmental Attribute Code Asbestos alternative products
FEAT Special Features As differentiated by filler of non-asbestos material
MATT Material Copper case fiber nonasbestos and asphalt and rubber butadiene-acrylonitrile class nbr core
MDCL Material Document and Classification HH-G-101 fed spec single material response case HH-G-101, type 3 fed spec all material responses core
STYL Style Designator B1 circular
