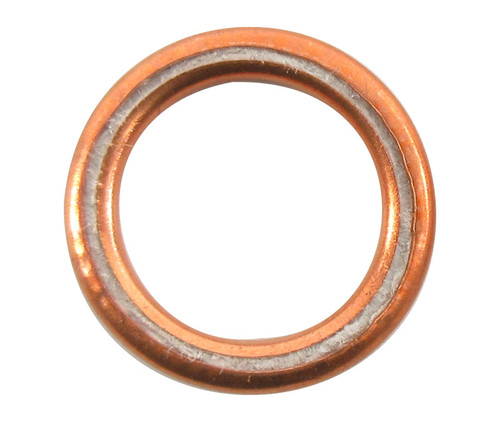

Military Standard MS35769-10 Copper Crush Gasket

Our Part #: SGP138283
Manufacture Part #: MS35769-10
Our Price: $0.71 (Each)

Bulk Shop & Save

  • 100 - 249 $0.70 (Each)
  • 250 - 499 $0.69 (Each)
  • 500 - 999 $0.68 (Each)
  • 1000 + $0.67 (Each)
world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

Approvals and Conformities

Approvals and Conformities

NSN
5330-01-432-3788
Alternate PN#s
AN900-9

Product Attributes

Country of Origin
United States
Shipping Weight
0.001 pounds
ECCN
9A991.d
Color Family
Copper
Manufacturer P/N
MS35769-10
Schedule B Code
7415.21.0000
Pack Quantity
1
Series
MS35769
Inside Diameter
9/16"
Outside Diameter
13/16"
Thickness
3/32"
Color
Copper
Material
Copper Alloy
MS35769 annular copper gaskets. Replaces AN900 and SAE-AS35769 gaskets. Ring width is 1/8"; thickness is 3/32".
MRC Parameter Characteristics
AAGR Cross-Sectional Shape Style F35 metal with soft filler
ABKV Outside Diameter 0.796 inches minimum and 0.812 inches maximum
ABVL Aperture Diameter 0.562 inches minimum and 0.578 inches maximum
ADVM Cross-Sectional Thickness 0.094 inches minimum and 0.110 inches maximum
CQFM Hardness Rating 60.0 shore durometer a minimum and 70.0 shore durometer a maximum
MATT Material Copper case fiber nonasbestos and asphalt and rubber butadiene-acrylonitrile class nbr core
MDCL Material Document and Classification HH-G-101 fed spec single material response case HH-G-101, ty III fed spec all material responses core
STYL Style Designator B1 circular
