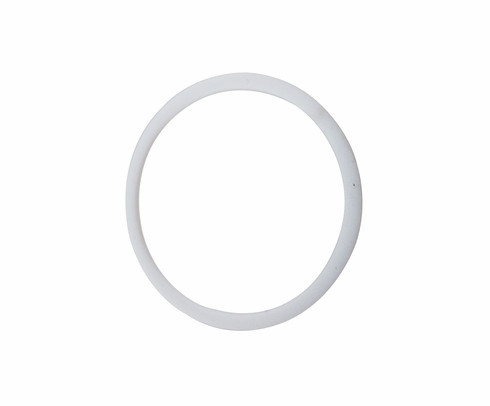

Military Standard MS28774-144 Teflon (PTFE) Retainer, Packing

Military Standard MS28774-144 Teflon (PTFE) Retainer, Packing
Our Part #: SGP136721
Manufacture Part #: MS28774-144
Our Price: $1.19
Price Per Each

Bulk Shop & Save

  • 100 - 249 $1.17 ea.
  • 250 - 499 $1.15 ea.
  • 500 - 999 $1.13 ea.
  • 1000 + $1.11 ea.
On Order: 1 Each on order & due in ± 7-10 days
Need More? Current lead time is 37-40 business days.
Adding to cart… The item has been added

world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

Teflon back-up ring for use with MS28784 and MS29513 O-rings.
MRC Parameter Characteristics
AAGR Cross-Sectional Shape Style D2 square/rectangular
ADVN Cross-Sectional Height 0.048 inches minimum and 0.052 inches maximum
ADYT Center Hole Diameter 2.506 inches minimum and 2.510 inches maximum
ADYU Peripheral Diameter 2.680 inches nominal
AQNE Joint Type Scarf-peripheral retainer
AQZM Cut Type Diagonal overall
MATT Material Plastic tetrafluoroethylene overall
MDCL Material Document and Classification MIL-R-8791 mil spec single material response overall
SR-1 Manufacturers Code Military Standards (96906)
SR-1 Definitive Government Spec/Std Reference MS28774-144
Country of Origin
United States
Shipping Weight
0.001 pounds
ECCN
EAR99
Color Family
White
Manufacturer P/N
MS28774-144
Schedule B Code
3926.90.4500
Pack Quantity
1
Series
MS28774
Color
White
Material
Teflon (PTFE)
NSN
5330-01-471-5721
Alternate PN#s
5330-01-471-5721
