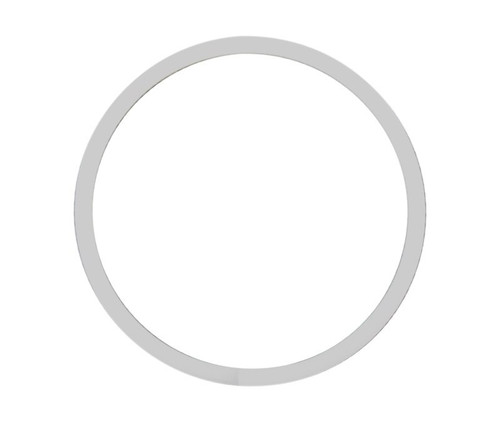

Military Standard MS28774-138 Teflon (PTFE) Retainer, Packing

Our Part #: SGP136716
Manufacture Part #: MS28774-138
Our Price: $1.42
Price Per Each

Bulk Shop & Save

  • 100 - 249 $1.22 ea.
  • 250 - 499 $1.19 ea.
  • 500 - 999 $1.15 ea.
  • 1000 + $1.12 ea.

world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

Approvals and Conformities

Approvals and Conformities

NSN
5330-00-702-2534

Product Attributes

Country of Origin
United States
Shipping Weight
0.001 pounds
ECCN
9A991.d
Color Family
White
Manufacturer P/N
MS28774-138
Schedule B Code
3926.90.4500
Pack Quantity
1
Series
MS28774
Inside Dia.
0.045" min., 0.052" max.
Outside Dia.
2.146" min., 2.148" max.
Width
2.319"
Color
White
Material
Plastic Polytetrafluoroethylene
Teflon back-up ring for use with MS28784 and MS29513 O-rings.
MRC Parameter Characteristics
AAGR Cross-Sectional Shape Style D2 square/rectangular
ADVN Cross-Sectional Height 0.045 inches minimum and 0.052 inches maximum
ADYT Center Hole Diameter 2.146 inches minimum and 2.148 inches maximum
ADYU Peripheral Diameter 2.319 inches nominal
AQNE Joint Type Scarf-peripheral retainer
AQZM Cut Type Diagonal overall
MATT Material Plastic tetrafluoroethylene overall
MDCL Material Document and Classification MIL-R-8791 mil spec single material response overall
SR-1 Definitive Government Spec/Std Reference MS28774-138
SR-1 Manufacturers Code Military Standards (96906)
