0.045" min., 0.052" max.
1.708" min., 1.710" max.
1.879" min., 1.883" max.

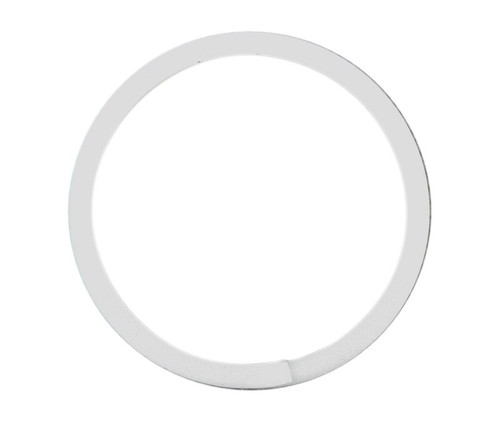

Teflon back-up ring for use with MS28784 and MS29513 O-rings.
|MRC ||Parameter ||Characteristics |
|AAGR ||Cross-Sectional Shape Style ||D2 square/rectangular |
|ADVN ||Cross-Sectional Height ||0.045 inches minimum and 0.052 inches maximum |
|ADYT ||Center Hole Diameter ||1.708 inches minimum and 1.710 inches maximum |
|ADYU ||Peripheral Diameter ||1.879 inches minimum and 1.883 inches maximum |
|AQNE ||Joint Type ||Scarf-peripheral retainer |
|AQZM ||Cut Type ||Diagonal overall |
|MATT ||Material || Plastic tetrafluoroethylene overall |
|MDCL ||Material Document and Classification ||SAE-AS8791 national spec single material response overall |
|SR-1 ||Manufacturers Code ||Military Standards (96906) |
|SR-1 ||Definitive Government Spec/Std Reference ||MS28774-131 |
|ZZZW ||Departure from Cited Document ||Cleaned in accordance with MIL-STD-1330 |
