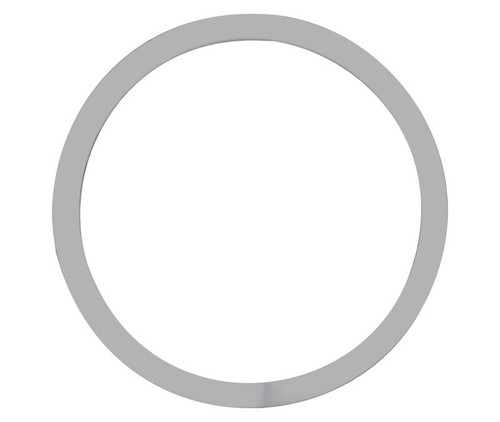

Military Standard MS28774-123 Teflon (PTFE) Retainer, Packing

Military Standard MS28774-123 Teflon (PTFE) Retainer, Packing
Our Part #: SGP136700
Manufacture Part #: MS28774-123
Our Price: $0.89
Price Per Each

Bulk Shop & Save

  • 100 - 249 $0.88 ea.
  • 250 - 499 $0.86 ea.
  • 500 - 999 $0.85 ea.
  • 1000 + $0.84 ea.
In-Stock: 23 Units available.
Need More? 2,145 Units on order and expected in ± 8-12 business days.
Adding to cart… The item has been added

world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

Teflon back-up ring for use with MS28784 and MS29513 O-rings.
MRC Parameter Characteristics
AAGR Cross-Sectional Shape Style D2 square/rectangular
ADVN Cross-Sectional Height 0.045 inches minimum and 0.052 inches maximum
ADYT Center Hole Diameter 1.206 inches minimum and 1.208 inches maximum
ADYU Peripheral Diameter 1.376 inches minimum and 1.382 inches maximum
AQNE Joint Type Scarf-peripheral overall
AQZM Cut Type Diagonal overall
MATT Material Plastic tetrafluoroethylene overall
MDCL Material Document and Classification SAE-AS8791 national spec single material response overall
SR-1 Manufacturers Code Military Standards (96906)
SR-1 Definitive Government Spec/Std Reference MS28774-123
Country of Origin
United States
Shipping Weight
0.001 pounds
ECCN
EAR99
Color Family
White
Manufacturer P/N
MS28774-123
Schedule B Code
3926.90.4500
Pack Quantity
1
Ship Dimensions
2 x 2 x 0 inches
Series
MS28774
Inside Dia.
0.045" min., 0.052" max.
Outside Dia.
1.206" min., 1.208" max.
Width
1.376" min., 1.382" max.
Color
White
Material
Plastic Tetrafluoroethylene
NSN
5330-01-285-1782
