Country of Origin
United States
Shipping Weight
0.25 pounds
Manufacturer P/N
MS24392J2
Schedule B Code
7307.99.4000

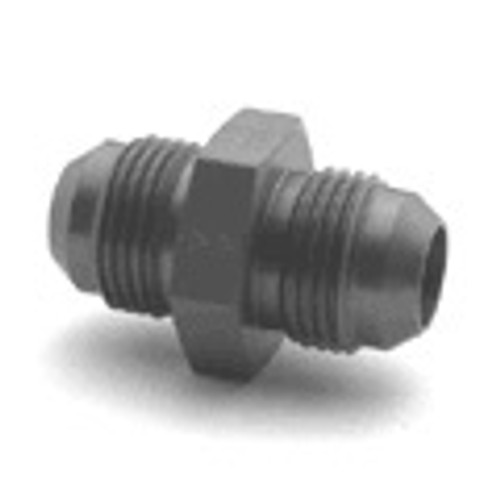

Thread Class: 3A All Ends Connection Style: Flared (Tube) All Ends Connection Type: Threaded External Tube All Ends Maximum Operating Pressure: 3000.0 Pounds Per Square Inch Single Response Nominal Thread Size: 0.312 Inches All Ends Seat Angle: 37.000 Degrees All Ends Nominal Outside Diameter Tube Accommodated: 0.125 Inches All Ends Nominal Overall Length: 1.219 Inches Material: Steel Comp 316 Overall Material Document and Classification: 66,300 Series Fed Std Single Material Response Overall Media For Which Designed: Fluid Single Response Surface Treatment: Passivate Overall Surface Treatment Document and Classification: Mil-F-14072,E300,Ty 2 Mil Spec Single Treatment Response Outside Style Designator: Flared W/ Center Wrenching Facility Thread Series Designator: UNJIF All Ends Specification/Standard Data: 96906-MS24392 Government Standard
