Country of Origin
United States
Shipping Weight
0.22 pounds
Schedule B Code
3214.10.0010
Ship Dimensions
3 x 1 x 7 inches
Size
50 mL (1.69 oz) Bottle

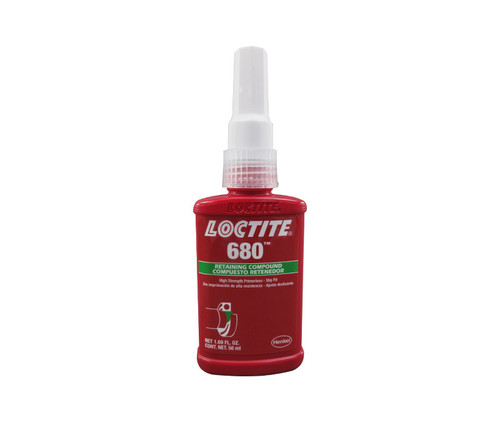

Top Pick Loctite® 680™ is a high strength, high viscosity room temperature curing adhesive used to join fitted cylindrical parts. It fixtures in 10 minutes and provides a shear strength of 4,000 psi. Capable of filling diametral gaps up to 0.015 in. (0.38 mm). Loctite 680 allows relaxed machining tolerances, and replaces clamp rings, set screws, and snap rings. Gives best resistance to dynamic, axial and radial loads. Recommended for retaining shafts, gears, pulleys and similar cylindrical parts. NSF/ANSI 61 Certified. ABS Approved.
Capacity Vol. | 50 mL |
Packing Type | Bottle |
Color | Green |
Gap Fill | 0.015 in [Max] |
Viscosity | 1250.0 cP |
Shear Strength | 4000 psi |
Temp. Range | -65.0 °F [Min], 300.0 °F [Max] |
Fix Cure Time @ Temp. | 10 min @ 77 °F |
Full Cure Time @ Temp. | 24 h @ 77 °F |
Chemical Compound | Acrylic Ester |
Curing Method | Anaerobic |
Wt. | 0.22 lb |
Applications | Bearing, Joint, Fan |
Applicable Materials | Most Metals |
Odor/Scent | Mild |
Resistance | Brake Fluid, Motor Oil, Unleaded Gasoline |
UPC | 079340680357 |
UNSPSC | 31201600 |
Safety Data Sheet
