Approvals and Conformities
Alternate PN#s
30536
Product Attributes

United States
Size
0.33 oz
Shipping Weight
0.15 pounds
ECCN
EAR99
Manufacturer P/N
270640
Schedule B Code
3403.99.0000
Pack Quantity
1
Ship Dimensions
8 x 4 x 1 inches
Size
9.3 Gram (0.33 oz) Tube

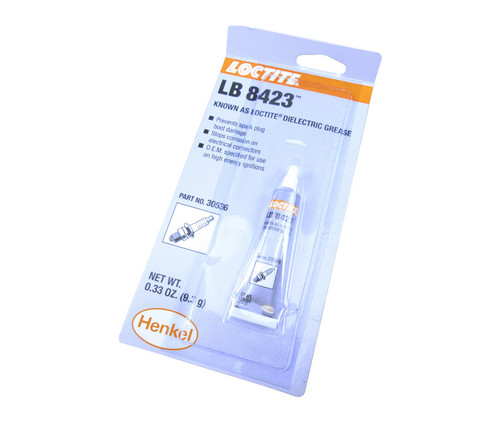

Loctite Dielectric Grease is a silicone dielectric compound that facilitates and improves tune-ups. The compound prevents voltage leakage around any electrical connector thereby insuring a strong spark in high energy ignition systems. It also an excellent lubricant on rubber, plastic and ceramic surfaces, and it also has good high temperature properties, thus preventing fusing of spark plug boots to the spark plug itself. Typical applications include spark plug boots, distributor cap nipples, battery terminals, ignition coil connectors, and trailer electrical connectors. This product is typically used applications with an operating range of -55 °C to 204 °C.
Features
- Corrosion resistant
- Improves connections
- High dielectric strength
- Good thermal, oxidation, and chemical stability
- Provides a moisture-proof barrier that lubricates and protects electrical equipment from dirt, salt, and corrosion
- Applicable to ceramic, plastic, and rubber
- Material: Silicone
- Color: Transluscent white
- Size: 0.33 oz
- Specific Gravity @ 25 °C : 1.03
- Flash Point : See MSDS
- Penetration, ISO 2137, 1/10mm : 200 to 300
- Dielectric Breakdown Strength, IEC 60243-1, kV/mm: 19.8
- Dielectric Constant / Dissipation Factor, IEC 60250#58; 3.0 / 0.007
- Volume Resistivity, IEC 60093, ?·cm : 2.6x10
