INTERNATIONAL SHIPPING
Approvals and Conformities
Product Attributes
Country of Origin
United States
Shipping Weight
0.73 pounds
ECCN
7A994
Color Family
White
Manufacturer P/N
CI-285
Schedule B Code
9803.20.0000
Pack Quantity
1
Ship Dimensions
12 x 9 x 4 inches
Color
White

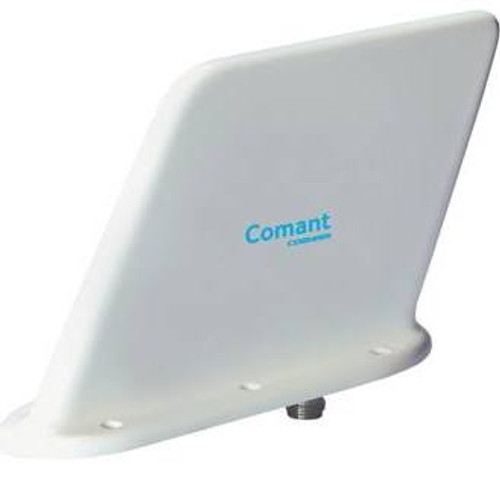

UHF blade antenna design for high performance aircraft over the full frequency range of 400-960 MHz. Low profile, low drag, light weight antenna is packaged in a molded body and metal mounting base to ensure stable performance in tough environmental conditions. Features vertically polarized/omnidirectional pattern, extremely wide band/high efficient electrical performance. DC grounding for lightning protection, 6 hole mounting.
| MODEL CI 285 Series UHF Antenna | |
| Electrical | |
| Frequency | 400 to 960 MHz |
| VSWR | 2.0:1 Maximum |
| Polarization | Vertical |
| Radiation Pattern | Equivalent of λ / 4 Stub |
| Impedance | 50 Ohms |
| Power Rating | 100 Watts Average |
| Mechanical | |
| Weight | 0.75 lb. Maximum |
| Height | 5.20 In. Maximum |
| Material | Lexan |
| Finish | Polyurethane Enamel |
| Connector | N (female) |
| Environmental | |
| Temperature | -55ºC to +70ºC |
| Altitude | 50,000 ft. |
| Air Speed | 600 knots TAS @ 25,000 ft. |
| Order Options | |
| Connector | |
| N | CI 285 Standard |
| Color | |
| White | Standard |
