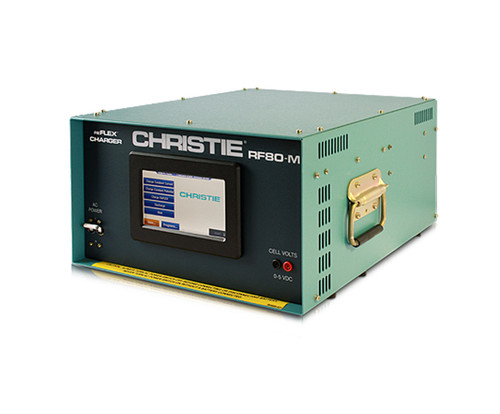

CHRISTIE® RF80-M Aircraft Lead Acid & Ni-Cad Battery Charger / Analyzer
Our Part #:
SGP14867
Manufacture Part #:
123020-001
Our Price:
$22,617.13
Price Per Each
INTERNATIONAL SHIPPING
SkyGeek welcomes international orders!
Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.
Approvals and Conformities
Country of Origin
Approvals and Conformities
Product Attributes

United States
Shipping Weight
230 pounds
ECCN
EAR99
Manufacturer P/N
123020-001
Schedule B Code
9030.33.0040
Pack Quantity
1
Christie RF-80-M® Aircraft Battery Charger/Analyzer is the latest evolution of the popular RF80 Series which has been the worldwide industry standard for decades.
The RF80-M is the first product of its kind to feature an advances microcontroller with touch screen display.
Christie RF-80-M® Benefits:
- Intuitive, easy to use, and large bright display of volts, amps and time
- Compatible with ABMS-10X Battery Management System for PC control, individual cell monitoring, temp sensing, data-logging, diagnostics and expanded battery processing capabilities
- Fully compatible with all battery manufacturer's component maintenance manuals
- Allows single or multiple charge/discharge tasks to be run in sequence
- Battery parameters may be stored and custom task sequences saved for automatic processing
- The only charger/analyzer offering all 3 charge modes including ReFLEX® for fast charging
- Audible alert notifies operator when task is complete
- User may program an alert as a reminder to check or water battery
- Rock solid, reliable design
- Visual indication of battery processing status
- Buit-in limits for charge/discharge current values, times and termination
- Complies with international CE safety standards
Features
Christie RF-80-M® Aircraft Battery Charger/Analyzer
- 123020-001 Features:
- 7 Inch Touch Screen Display
- Optional ABMS-10X PC Interface
- Up to 80 amps ReFLEX® Charge, 65 amps CC/CP Charge and 60 amps Discharge
- Manual Mode
- Program Mode
- Constant Current, Constant Potential and ReFLEX ® charge modes
- Alarm signals at each end of task
- Programmable Alert
- Proven RF80-K Power Section
- DigiFLEX Analysis
- Enhanced safety Features
- CE tested and certified
Christie RF-80-M® Aircraft Battery/ Specifications:
Mechanical: | |
---|---|
Width: | 18.55 Inches (47.12 CM) |
Height: | 11 Inches (27.84 CM) |
Depth: | 21.5 Inches (54.61 CM) |
Weight: | 145 Pounds (65.90 Kg) |
Material: | |
---|---|
Case Material: | Steel |
Front Panel: | Steel with Polyester Overlay |
Electrical: | |
---|---|
Input: | |
Input Voltage: | 187 to 250 VAC, single phase |
Frequency: | 47 to 63 hertz |
Current: | 25 amps maximum |
Power Switch: | Opens both sides of line | Output: |
Charge ReFLEX: | 1-80 amps |
Charge, constant current: | 1-65 amps |
Charge, constant potential: | 1-65 amps |
Discharge, constant current: | 1-60 amps |
Environmental: | |
---|---|
Non-Operating: | -40℉ +159℉ (-40℃ +71℃) |
Operating: | -40℉ +159℉ (-40℃ +71℃) |
Product Attributes
