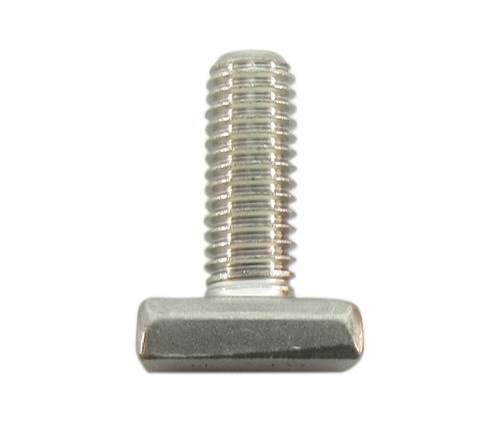

Military Standard MS9432-06 Stainless Steel Chamfered Bolt, Tee Head

Military Standard MS9432-06 Stainless Steel Chamfered Bolt, Tee Head
Military Standard MS9432-06 Stainless Steel Chamfered Bolt, Tee Head
Military Standard MS9432-06 Stainless Steel Chamfered Bolt, Tee Head
Military Standard MS9432-06 Stainless Steel Chamfered Bolt, Tee Head
Our Part #: SGP138916
Manufacture Part #: MS9432-06
Our Price: $12.07
Price Per Each

world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

Related Items

Product Added to Cart Successfully

Approvals and Conformities

Approvals and Conformities

NSN
5306-00-947-3542

Product Attributes

Country of Origin
United States
Shipping Weight
0.003 pounds
ECCN
9A991.d
Color Family
Gray
Manufacturer P/N
MS9432-06
Schedule B Code
7318.15.2000
Pack Quantity
1
Ship Dimensions
1 x 1 x 1 inches
Series
MS9432
Length
.500"
Grip
.114-.134
Head
Tee
Color
Gray
Material
Stainless Steel
  • Thread Class: 3A
  • Thread Direction: Right-Hand
  • Thread Length: 0.376 Inches Minimum
  • Fastener Length: 0.500 Inches Nominal
  • Head Style: Tee No. 3
  • Head Height: 0.125 Inches Nominal
  • Head Length: 0.420 Inches Minimum And 0.440 Inches Maximum
  • Width Between Flats: 0.310 Inches Minimum And 0.320 Inches Maximum
  • Nominal Thread Diameter: 0.190 Inches
  • Thread Quantity Per Inch: 32
  • Minimum Tensile Strength: 85000 Pounds Per Square Inch
  • Material: Steel Comp 9840 Overall
  • Material Document And Classification: 66 Fed Std Single Material Response Overall
  • Surface Treatment: Passivate Overall
  • Thread Series Designator: Unjf
