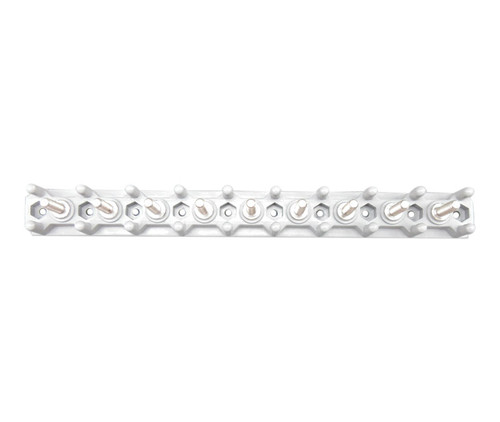

Military Standard MS27212-6-9 Terminal Board

Military Standard MS27212-6-9 Terminal Board
Our Part #: SGP136440
Manufacture Part #: MS27212-6-9
Price Per Each

world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

  • Mounting Hole Diameter: 0.115 Inches
  • Body Style: Barrier Standoff
  • Terminal Row Quantity: 1
  • Center To Center Distance Between Terminals: 0.750 Inches
  • Board Construction: Hollow Construction Without Insulated Strip
  • Center To Center Distance Between Mounting Facilities Parallel To Length: 0.750 Inches
  • Distance From Bottom Edge Of Terminal Board To Center Of Mounting Hole: 0.375 Inches
  • Distance From Left Edge Of Terminal Board To Center Of First Mounting Facility: 0.210 Inches
  • Board Overall Length: 12.454 Inches
  • Board Overall Width: 0.750 Inches
  • Board Overall Height: 1.005 Inches
  • Board Height Excluding Terminals: 0.625 Inches
  • Base Thickness: 0.281 Inches
  • Mounting Facility Type And Quantity: 17 Unthreaded Hole
  • Nonfeedthru Terminal Type: 598 Single
  • Nonfeedthru Terminal Quantity: 16 Single
  • Terminal Pattern Arrangement: Single Row
  • Terminal Design: Nonfeedthru
  • Special Features: 16 Max Non-Feed-Through Terminals,Cut To Desiredsize At Point Of Installation.
  • Material: Copper Alloy Terminals
  • Material: Plastic Board
  • Country of Origin
    United States
    Shipping Weight
    0.005 pounds
    ECCN
    EAR99
    Manufacturer P/N
    MS27212-6-9
    Schedule B Code
    8536.90.4000
    Pack Quantity
    1
    Series
    MS27212
    Material
    MIL-P-19833 Plastic
