Country of Origin
United States
Shipping Weight
0.005 pounds
Manufacturer P/N

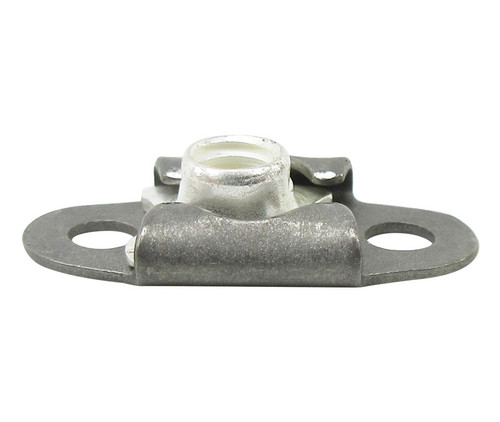

MS21076-06N
Schedule B Code
7318.16.0000
Ship Dimensions
3 x 1 x 1 inches
Material
Corrosion-Resistant Steel
Thread Class: 3B Thread Direction: Right-Hand Locking Feature: Prevailing Torque All Metal Design Mounting Hole Diameter: 0.098 Inches Minimum And 0.103 Inches Maximum Nut Style: Plate Nut Length: 0.682 Inches Maximum Nut Height: 0.171 Inches Maximum Plate Thickness: 0.140 Inches Maximum Plate Width: 0.290 Inches Minimum And 0.357 Inches Maximum Nut Mounting Provision: Straight Holes Mounting Hole Arrangement Style: 2 Holes Distance From Aperture Center To Mounting Hole Center: 0.213 Inches Minimum And 0.223 Inches Maximum Center To Center Distance Between Mounting Holes Along Length: 0.435 Inches Minimum And 0.439 Inches Maximum End Item Identification: W/S:Missile, All-Weather Anti-Ship, Harpoon (Agm-84); Aircraft (Ac-130H, Mc-130H, Ec-130E, Hc-130); Helicopter, Advance Attack, Ah-1W; Aircraft, Airlifter C-17A; Helicopter, Mh-53E; Aircraft, C-2A (Reprocured); Test Consoles, Mini-Sace; Deep Submergencesystems Programs (Dssp); Missile, Air-To-Air, Sparrow (Aim-7) Temp Rating: 800.0 Deg Fahrenheit Nominal Thread Series: Unjc Features Provided: Floating Nut Thread Quantity Per Inch: 32 Hardness Rating: 49.0 Rockwell C Maximum Nominal Thread Size: 0.138 Inches Material: Iron Alloy 660 Overall Material Document And Classification: Ams 5735 Assn Std Single Material Response Overall Or Ams 5737 Assn Std Single Material Response Overall Or Ams 5525 Assn Std Single Material Response Overall Precious Material: Silver Surface Treatment: Silver Overall Surface Treatment Document And Classification: Ams 2410 Assn Std Single Treatment Response Overall
