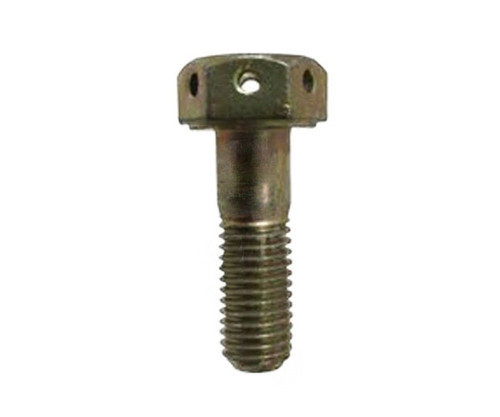

Military Standard MS20073-03-05 Steel Bolt, Machine - 50/Pack

Military Standard MS20073-03-05 Steel Bolt, Machine - 50/Pack
Military Standard MS20073-03-05 Steel Bolt, Machine - 50/Pack
Military Standard MS20073-03-05 Steel Bolt, Machine - 50/Pack
Our Part #: SGP133418-X50
Manufacture Part #: MS20073-03-05
Our Price: $349.00
Price Per Pack - (Pack = 50 ea)

Bulk Shop & Save

  • 2 + $335.50 ($6.71 ea)
Adding to cart… The item has been added

world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

Related Items

Description
  •  Thread Class:  3A
  •  Thread Direction:  Right-Hand
  •  Thread Length:  0.499 Inches Minimum And 0.578 Inches Maximum
  •  Fastener Length:  0.640 Inches Minimum And 0.687 Inches Maximum
  •  Head Style:  Hexagon
  •  Head Height:  0.172 Inches Minimum And 0.203 Inches Maximum
  •  Width Between Flats:  0.367 Inches Minimum And 0.376 Inches Maximum
  •  Hole Diameter:  0.070 Inches Nominal
  •  Nominal Thread Diameter:  0.190 Inches
  •  Grip Length:  0.109 Inches Minimum And 0.141 Inches Maximum
  •  Hole Quantity:  6
  •  Hole Type:  Drilled
  •  Features Provided:  Finished Head
  •  Thread Quantity Per Inch:  32
  •  Minimum Tensile Strength:  125000 Pounds Per Square Inch
  •  Hardness Rating:  26.0 Rockwell C Minimum Overall And 32.0 Rockwell C Maximum Overall
  •  Hole Configuration Style:  Hexagon Longitudinal Hole
  •  Material:  Steel Comp 8740 Overall Or Steel Comp 8630 Overall Or Steel Comp 8735 Overall Or Steel Comp 4037 Overall Or Steel Comp 4130 Overall Or Steel Comp 4140 Overall
  •  Material Document And Classification:  Mil-S-6049 Mil Spec 1St Material Response Overall Or Mil-S-6050 Mil Spec 2Nd Material Response Overall Or Mil-S-6098 Mil Spec 3Rd Material Response Overall Or Ams 6300 Assn Std 4Th Material Response Overall Or Mil-S-6758 Mil Spec 5Th Material Responseoverall Or Mil-S-5626 Mil Spec 6Th Material Response Overall
  •  Surface Treatment:  Cadmium Overall
  •  Surface Treatment Document And Classification:  Qq-P-416,Ty 2 Cl 3 Fed Spec Single Treatment Response Overall
  •  Thread Series Designator:  UNF
    • Product Attributes
    Country of Origin
    United States
    Shipping Weight
    0.001 pounds
    ECCN
    9A991.d
    Color Family
    Gold
    Manufacturer P/N
    MS20073-03-05
    Schedule B Code
    7318.15.2000
    Pack Quantity
    50
    Series
    MS20073
    Color
    Gold
    Material
    Alloy Steel
    Approvals and Conformities
    NSN
    5306-00-754-1791
    Alternate PN#s
    AN73-5
