Approvals and Conformities
NSN
3120-01-508-9176
Product Attributes
Country of Origin
United States
Shipping Weight
0.05 pounds
ECCN
9A991.d
Manufacturer P/N
MS14104-10
Schedule B Code
8482.30.0040
Pack Quantity
1
Ship Dimensions
2 x 2 x 2 inches
Series
MS14104
Bore
.6250
Diameter
1.1875

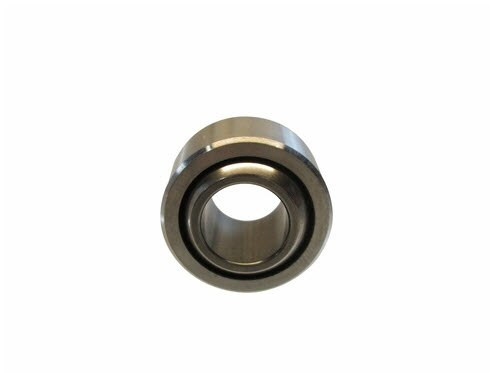

The MS14104-10 is considered a self-aligning, self-lubricating plain bearing. It is also known for its low speed and narrow features as well. This bearing is especially suited on the RQ-4A Global Hawk. More details can be found below.
*Unless otherwise noted, values are in inches
Material: Steel (composition 440C, inner member); steel (composition 630, outer member); plastic (Teflon, race liner)
Surface Treatment: Passivate (inner member); cadmium and chromate (outer member)
Bore Diameter Range: .6245 to .6250
Outside Diameter Range (outer member): 1.1870 to 1.1875
Width Range (outer member): .4950 to .5050
Width Range (inner member): .6230 to .6250
