Approvals and Conformities
NSN
5325-00-298-7022
Alternate PN#s
1142000-18
Product Attributes
Country of Origin
United States
Shipping Weight
0.005 pounds
ECCN
9A991.d
Manufacturer P/N
4002-18
Schedule B Code
9607.19.0000
Pack Quantity
5
Stud Length
1.15"
Stud Size
18
Head Type
Slotted
Series
4002
Material
Zinc Plated Steel

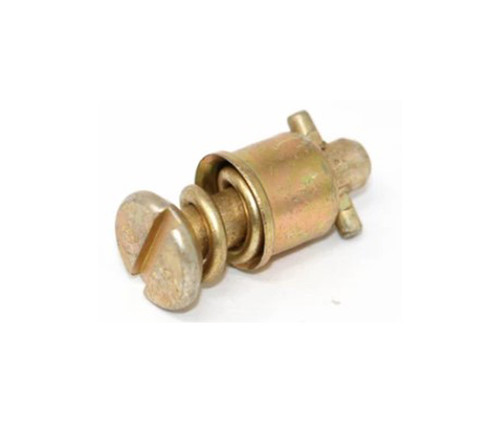

The Camloc 4002-18 Stud is a heavy duty, slotted recess head stud from the Camloc 4002 series of fasteners. Made from steel with zinc plating. The heavy-duty 4002 series Camlocs are rated for 700 pounds working strength (1050 pounds ultimate strength). They are designed to be used with a metal grommet to help spread the attachment forces. The slot head allows quick use with a standard flat blade screwdriver (no special tools needed).
Features
w/ floating receptacle
w/ low profile grommet: .490-.790in
