Country of Origin
United States
Shipping Weight
2.63 pounds
Schedule B Code
8421.29.0015
Ship Dimensions
7.75 x 5.25 x 3.5 inches

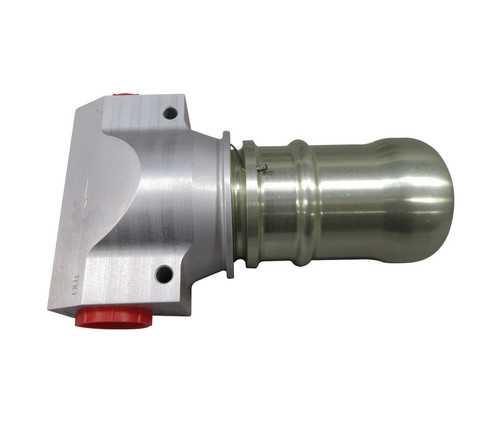

Mounting Type: Unthreaded Hole Head Side Mounting Hole Diameter: 0.266 Inches Nominal Mounting Hole Quantity: 2 Body Length: 4.000 Inches Nominal Body Width: 3.000 Inches Nominal Body Height: 7.562 Inches Nominal Filtration Rating In Microns: 10.0 Nominal Distance Between Mounting Hole Centers: 3.125 Inches Nominal Design Type: Reusable Features Provided: By-Pass Valve Filtering Element Quantity: 1 Maximum Operating Pressure: 3000.0 Pounds Per Square Inch Filtering Media Design: Encased Single Filtering Media Response First Intake Connection Type: Threaded Internal Tube Head Side First Discharge Connection Relationship To Intake Connection: Identical To First Intake Connection Distance From Bottom Of Body To Center Of Inlet: 6.312 Inches Nominal First Intake Thread Series Designator: Un First Intake Nominal Thread Size: 1.062 Inches First Intake Thread Quantity Per Inch: 12 First Intake Thread Class: 3B First Intake Thread Direction: Right-Hand Filtering System For Which Designed: Full Flow Material: Aluminum Body Material: Cellulose Filtering Medium Media For Which Designed: Fuel/Oil, Hydrocarbon Style Designator: Tee Type (Hydraulic) Specification/Standard Data: 81349-Mil-F-5504 Government Specification
