Country of Origin
United States
Shipping Weight
0.1 pounds
Manufacturer P/N
MS24678-25
Schedule B Code
7318.15.9000

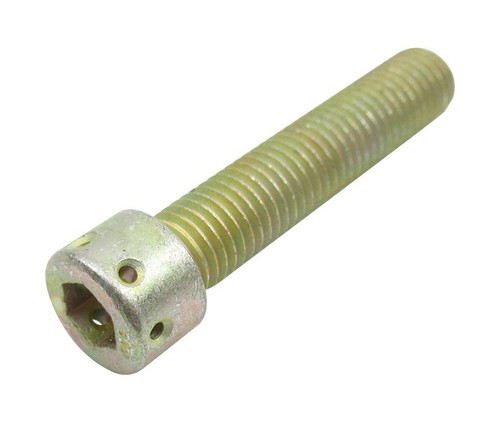

Thread Class: 3A
Thread Direction: Right-Hand
Thread Length: 1.139 Inches Minimum And 1.250 Inches Maximum
Fastener Length: 1.210 Inches Minimum And 1.250 Inches Maximum
Head Style: Flat Chamfer
Head Diameter: 0.365 Inches Minimum And 0.375 Inches Maximum
Head Height: 0.244 Inches Minimum And 0.250 Inches Maximum
Hole Diameter: 0.047 Inches Nominal
Internal Drive Style: Hexagon
Nominal Thread Diameter: 0.250 Inches
Width Across Flats: 0.1875 Inches Minimum And 0.1900 Inches Maximum
Hole Quantity: 3
Hole Type: Drilled
Thread Quantity Per Inch: 28
Minimum Tensile Strength: 170000 Pounds Per Square Inch
Hardness Rating: 38.0 Rockwell C Minimum Overall And 45.0 Rockwell C Maximum Overall
Minimum Yield Strength: 150000 Pounds Per Square Inch
Hole Configuration Style: Round Internal Hexagon
Material: Steel Overall
Surface Treatment: Cadmium Overall And Chromate Overall
Surface Treatment Document And Classification: Qq-P-416 Ty 2 Cl 3 Fed Spec Single Treatment Response Overall
Thread Series Designator: Unf
Nondefinitive Spec/Std Data: 6 Type
