Country of Origin
United States
Shipping Weight
0.5 pounds
Manufacturer P/N
MS17987C412
Schedule B Code
7318.29.0000

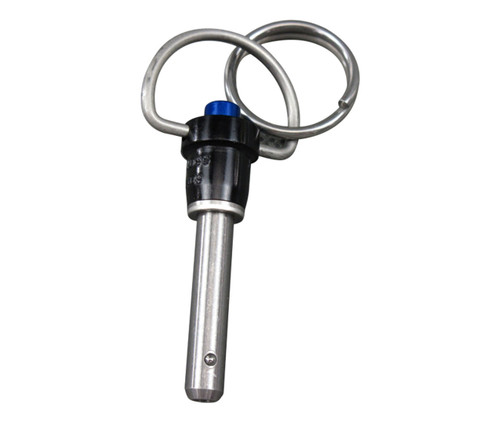

Head Diameter: 0.310 Inches Minimum And 0.530 Inches Maximum Shank Diameter: 0.247 Inches Minimum And 0.249 Inches Maximum Ring Handle Diameter: 1.060 Inches Minimum Detent Quantity: 2 Actuation Method: Push Button Grip Length: 1.200 Inches Minimum And 1.220 Inches Maximum Actuation Type: Push Hardness Rating: 40.0 Rockwell C Minimum Overall Shoulder To Head End Distance: 0.780 Inches Minimum Pin Attachment Type: Hook Or Ring Detent To Tapered End Distance: 0.260 Inches Minimum And 0.290 Inches Maximum Material: Steel Comp 630 Shank Or Steel Comp 632 Shank Material: Steel Comp 630 Spindle Or Steel Comp 632 Spindle Material Document And Classification: Ams 5643 Assn Std 1St Material Response Shank Or Ams 5657 Assn Std 2Nd Material Response Shank Material Document And Classification: Ams 5643 Assn Std 1St Material Response Spindle Or Ams 5657 Assn Std 2Nd Material Response Spindle Surface Treatment: Passivate Overall Style Designator: Ring Handle
