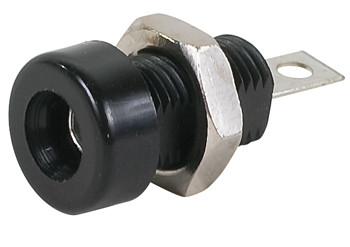

Cinch Connectors 108-0903-001 Black Banana Jack, Tip

Our Part #: SGP12619-X25
Manufacture Part #: 108-0903-001
Each Price: $1.04
Our Price: $26.00 (25/Pack)
world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

Cinch Connectors 108-0903-001 Black Banana Jack, Tip

Approvals/References/Specification

  • Allied Devices Specification:920-1522
  • Ballantine Laboratories Specification:31-10159-0A
  • Biotek Instruments Specification:42002
  • Boeing Specification:BACJ11AB1-03
  • Boeing Specification:000-8002-757
  • Boeing Specification:414-1586-003
  • Boeing Specification:BACJ11AB1-03
  • C & K Components Specification:25535-325
  • Concord Electronics Specification:09-9126-1-0710
  • Dialight Specification:1509-103-BLK
  • Dialight Specification:1509-103BLACK
  • Dialight Specification:1509-103
  • Dialight Specification:1509BLK
  • Halsit Holdings Specification:1509-103
  • Halsit Holdings Specification:1509BLK
  • Hewlett-Packard Specification:108-0903-001
  • Hewlett-Packard Specification:1251-0463
  • Honeywell Specification:2503406
  • Honeywell Specification:2503406-3
  • Honeywell Specification:D910121-3
  • Hughes Missile Systems Specification:7684-60002-003
  • Huntron Specification:01-1031
  • Interstate Electronics Specification:377-001-032
  • Johnson Electric Specification:108-0903-001
  • Keysight Technologies Specification:1251-0463
  • Lockheed Martin Specification:10315143
  • Lockheed Martin Specification:907417-03
  • Lockheed Martin Specification:10315143
  • Lockheed Martin Specification:2616865-3
  • National Security Agency Specification:0N295165-2
  • Naval Sea Systems Command Specification:5020052
  • Northrop Grumman Systems Specification:910773-8903
  • Northrop Grumman Systems Specification:910773-8903-000
  • Pace Specification:1207-0043
  • Palomar Products Specification:08-009-0001
  • Raytheon Specification:185776-2
  • Raytheon Specification:5030-289
  • Raytheon Specification:7684-60002-003
  • Rockwell Collins Specification:360-0241-00
  • Rockwell Collins Specification:360-0241-000
  • Rockwell Collins Specification:360-0241-00
  • Rockwell Collins Specification:360-0241-000
  • Solrac II Specification:01251-0463
  • Systron-Donner Specification:102636
  • USA Aviation and Missile Specification:10315143
  • USA Aviation and Missile Specification:P39024-015-02
  • Viking Technologies Specification:108-0903-001
  • Viking Technologies Specification:0903-001
  • Viking Technologies Specification:108-0903-001
  • Viking Technologies Specification:108-901-03
  • Viking Technologies Specification:108-903
  • Viking Technologies Specification:108903BLACK
  • Product Attributes

    Country of Origin
    United States
    Shipping Weight
    0.001 pounds
    ECCN
    EAR99
    Color Family
    Black
    Manufacturer P/N
    108-0903-001
    Schedule B Code
    8548.90.0100
    Pack Quantity
    25
    NSN
    5935-00-729-5559
    Color
    Black

    Other Part Numbers

    Boeing PN/Spec#
    BACJ11AB1-03
    Alternate PN#s
    108-0903-001
  • Thread Class : 2A
  • Thread Direction : Right-Hand
  • Electrical Insulation Feature : Insulated Completely
  • Identification Code Color : Black
  • Body Style : Threaded Bushing Mounted
  • Overall Length : 0.938 Inches Nominal
  • Mounting Bushing Length : 0.469 Inches Nominal
  • Body Length : 0.657 Inches Nominal
  • Overall Diameter : 0.438 Inches Nominal
  • Bushing Accommodation Hole Shape : Round W/Double Flat
  • Maximum Voltage Rating In Volts : 12500.0 Dc
  • Iii Accommodated Finger Type : Banana Spring Single Finger
  • Finger Accommodation Diameter : 0.175 Inches Nominal Single Finger
  • Finger Accommodation Length : 0.531 Inches Nominal Single Finger
  • Bushing Thru-Hole Accommodation Length : 0.250 Inches Nominal
  • Bushing Thru-Hole Accommodation Width : 0.328 Inches Nominal
  • Capacitance In Picofarads : 2.4
  • Thread Quantity Per Inch : 32
  • Nominal Thread Size : 0.313 Inches
  • Criticality Code Justification : Feat
  • Terminal Type : Tab, Solder Lug
  • Special Features : Weapon System Essential
  • Material : Plastic Insulator
  • Material : Plastic Cap
  • Material : Plastic Bushing
  • Material : Plastic Body
  • Material : Nickel Spring
  • Surface Treatment : Cadmium Terminal
  • Thread Series Designator : UNEF
