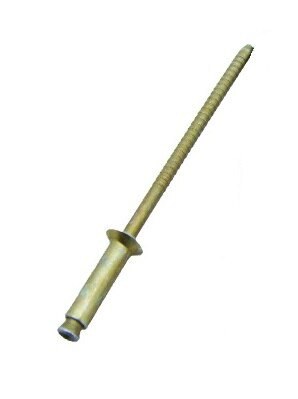

CHERRY® SPR™ CCR244-SS-3-05 Steel 100° Flush Head Nut-Plate Rivet - 100/Pack
PART #:
SGP103809-X100
MFR PART #:
CCR244-CS-3-05
Approvals and Conformities
NSN
5320-01-235-7901
MIL-SPEC#
NAS1097
Alternate PN#s
4052T00P02, AF5142R3-5, 4052T00
Product Attributes
Country of Origin
United States
Shipping Weight
0.001 pounds
ECCN
EAR99
Manufacturer P/N
CCR244-CS-3-05
Schedule B Code
7616.10.3000
Pack Quantity
100
Ship Dimensions
6 x 4 x 1 inches
Series
CCR244-CS-3
Diameter
3/32"
Grip Range
.251" - .312"
Material
Stainless Steel
Cherry CCR244-SS-3-05 Nut-Plate Rivet Corrosion Resistant Steel with NAS1097 Flush Head. Comes in 100 Pack.
Part Number Reference List for CCR244-CS - see image diagram
- A Max - .148"
- A' - (Actual Min.) .1263"
- B Max - .021"
- D (Dia. Size) - (Max .097) (Min .092)
- BK - (Min) .140"
- Hole Limits - (Max .101) (Min .097) "
- Grip Limits - .251" - .312"
- L - .380"(+.010 - .010)
- F - Max - .500"
