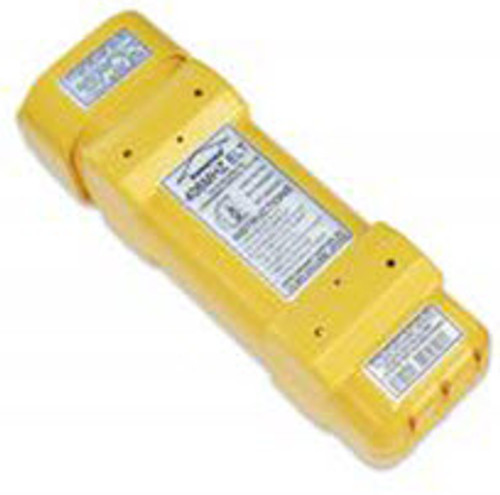

The Artex 453-5012 G406-4 ELT transmits on all 3 emergency frequencies (121.5/243.0 and 406 MHz). The system was designed for use with the general aviation market in mind. The ELT automatically activates during a crash and transmits the standard swept tone on 121.5 and 243.0 MHz. The G406-4 also transmits a 406 MHz encoded digital message to the Cospas/Sarsat satellite system, which allows for rapid identification and reduces Search and Rescue response time.
The G406-4 has been tested to meet the rigorous requirements of TSO C126 including 500 G shock, 1000 pound crush as well as flame and vibration tests. The G406-4 is available for use with Artex's low cost whip antennas or a sturdy fiberglass rod antenna. The G406-4 may be interfaced with the optional Artex ELT/NAV Interface enabling latitude and longitude data to be transmitted as part of the 406 MHz message.
Model: G406-4 Antenna Options Available: Rod 110-320
Whip(2 required) 110-324 (121.5/243) and 110-329 (406) Operating Frequencies: 406 MHz, 121.5 & 243. MHz +/- 0.005% (A3X) Output Power: 406 MHz: 5 W ± 2 dB (520 ms / 50 sec) for 24 hours @ -20° C
121.5/243.0 MHz: 100 mW minimum (+20 dBm) for 50 hours @ -20° C Output Connector: BNC Female (121.5/243 MHz)
TPS Female (406 MHz) Activation: Automatic by 4.5 feet per second (2.3 G) Primary G-Switch
or Manual Activation Battery: 5 year Lithium (LiMnO2, solid cathode) Temperature Certified to: Operating: -20° C to +55° C
Storage: -55° C to +85° C Self Test: G-Switch enabled
406 MHz Power
Antenna/Coax Connection
Position Data Present
Low Battery Remote Control: ON/ARM Weights (with tray): ELT Transmitter: 3 LB 5.8 oz Maximum (1.53 Kg)
Mounting Tray: 7 oz (200 g)
Protective Top Cover: 6.7 oz (190 g)
End Cap: 3.8 oz (108 g)
Total Weight: 2.02 Kg Measurements (with Mounting Hardware): 11.74" (298mm)L
3.90" (99mm)H
3.82"( 97mm)W
