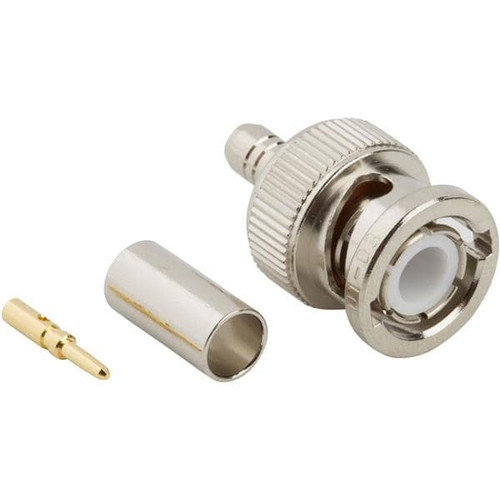

Amphenol RF 31-320 Brass/Nickle BNC RG-58, RG-141 & RG-303 Male Crimp Connector, Plug, Electrical

Our Part #: SGP31596
Manufacture Part #: 31-320
Our Price: $4.87 (Each)
Sale Price: $2.18
world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

  • Body Style: Straight Shape, Internal Coupling
  • Overall Length: 1.500 Inches Maximum
  • Overall Diameter: 0.593 Inches Maximum
  • Environmental Protection: Moisture Resistant And Salt Water Resistant And Vibration Resistant
  • Mating End Quantity: 1
  • Contact Position Arrangement Style: Bnc Single Mating End
  • Contact Removability: Removable Single Mating End Single Contact Grouping
  • Shell Type: Solid
  • Connector Locking Method: Bayonet Latch
  • Connector Cable Strain Relief Method: Compression Nut
  • Radio Frequency Type Contact Characteristic Impedance In Ohms: 50.0 Single Mating End Single Contact Grouping
  • Terminal Location: Back Single Mating End Single Contact Grouping
  • Contact Surface Treatment: Gold Single Mating End Single Contact Grouping
  • Contact Surface Treatment Document And Classification: Mil-G-45204,Type 2,Class 2 Mil Spec Single Treatment Response Single Mating End Single Contact Grouping
  • Terminal Type: Crimp Single Mating End Single Contact Grouping
  • Shell Material: Copper Alloy
  • Shell Surface Treatment: Silver
  • Included Contact Quantity: 1 Single Mating End Single Contact Grouping
  • Included Contact Type: Coaxial Pin Single Mating End Single Contact Grouping
  • Precious Material And Location: Contact Surfaces Gold And Sehll Surfaces Silver
  • Precious Material And Weight: 0.105 Gold Grains, Troy And 0.105 Silver Grains, Troy
  • Precious Material: Gold And Silver
  • Test Data Document: 81349-Mil-C-39012 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Typedata On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.).
  • Specification/Standard Data: 81349-Mil-C-39012/16 Government Specification
  • Product Attributes

    Country of Origin
    United States
    Shipping Weight
    0.001 pounds
    ECCN
    EAR99
    Color Family
    Silver
    Manufacturer P/N
    031-320
    Schedule B Code
    8536.69.5050
    Pack Quantity
    1
    NSN
    5935-00-483-4252
    Military Standard
    M39012/16-0013
    Color
    Silver
    Material
    Brass

    Other Part Numbers
