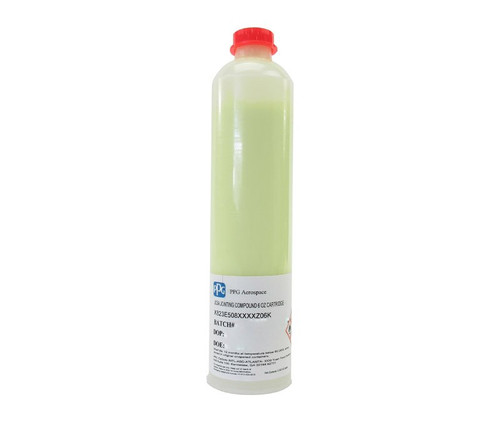

PPG Aerospace® DeSoto® JC5A Yellow Corrosion Inhibitive Jointing Compound - 6 oz Cartridge

Our Part #: SGP76198
Manufacture Part #: X823E508XXXXZ06K
Our Price: $143.00 (Each)

Bulk Shop & Save

  • 24 - 167 $141.05 ea.
  • 168 - 239 $139.14 ea.
  • 240 + $137.28 ea.

SkyGeek Shelf-Life Policy

Warning: This product may contain a chemical known by the State of California to cause health issues.

INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

Description

Protect your removable fasteners and assemblies from corrosion-causing moisture by using PPG PRC-DeSoto JC5A Jointing Compound from SkyGeek. The one-part, non-curing compound is easy to use and comes in a pre-filled six-ounce cartridge. Use as much as you need and store the extra right in the cartridge for no mess and virtually no cleanup. The joining compound is used to provide protection from galvanic corrosion, a well-known challenge in the aerospace industry. It goes on easily and provides excellent protection, even in the most demanding of environments. Use PPG PRC-DeSoto JC5A Jointing Compound in H20-enriched areas and parts of the aircraft that are consistently exposed to atmospheric conditions, environmental moisture and other corrosion-inducing hazards.

PPG PRC-DeSoto JC5A Jointing Compound has a yellow color for easy identification. It is paste-like in consistency which makes it easy to apply using either a brush, a roller or a spatula. The compound is specially formulated to remain permanently fluid and is resistant to all types of aviation fuels including jet fuel and aviation gasoline, both of which can be corrosive. It also works over a wide temperature range, making it ideal for any environment. The paste is packaged into a six-ounce cartridge for easy dispensing and a removable cap is included to assist with storage. JC5A jointing compound is priced competitively and qualifies for volume discounts on bulk orders of six or more tubes. A manufacturer’s certification may be added for an additional charge and same-day shipping is also available.

Product Attributes

Country of Origin
United States
Size
6 oz
Shipping Weight
0.75 pounds
ECCN
EAR99
UOM
Each
Color Family
Yellow
Manufacturer P/N
JC5A
Schedule B Code
3811.90.0000
Pack Quantity
1
Ship Dimensions
8 x 2 x 2 inches
NSN
8030-99-220-2495
Size
6 oz Cartridge
Color
Yellow

Other Part Numbers

GoodrichPartNumber
ABP 4-5144 Issue 5

Features

Application Properties (typical)
Color Yellow
Viscosity, Pa.s (poise) 75(750)
Squeeze test, mm 180
VOC content (g/l) 270
Specific gravity 1.49
Pigment contents, % by weight 43
Fineness of grind 5 (min)
Flash point, ºC, Closed cup(PMCC) 23

Performance Properties (typical)
Solubility in water @ 25ºC None
Exposure to heat and humidity @ 40°C and 95% RH for 1000 hours Aluminium/Stainless steel – easy removal, no corrosion
Graphite/Aluminium – easy removal, no corrosion
Exposure to dry heat @ 100ºC for 1000 hours Easy removal - compound still tacky
High temperature flow, 0.5mm, 24 hours @ 70ºC Dry - No flow
3% NaCl-H2O - No flow
Type III fuel immersion - No flow
Corrosion test by galvanic cell method, 14 days @ 25°C, 3% salt water solution. Al/titanium couple - no signs of corrosion or compound deterioration.
Al/stainless steel couple - no signs of corrosion or compound deterioration.
Al/cadmium plated steel couple - no signs of corrosion or compound deterioration.

Note: The application and performance property values above are typical for the material, but not intended for use in specifications or for acceptance inspection criteria because of variations in testing methods, conditions and configurations.

Surface preparation

Immediately before applying JC5A to metallic, chemically treated, or painted substrates, the surfaces should be cleaned with solvents to remove contamination such as dirt, grease, and/or processing lubricants. A progressive cleaning procedure should be employed using the appropriate solvents and new lint-free cloth (reclaimed solvents or tissue paper should not be used). Always pour the solvent on to the cloth to avoid contaminating the solvent supply.

Wash one small area at a time. It is important that the surface is dried with a second clean cloth prior to the solvent evaporating to prevent the re-deposition of contaminants on to the substrate.

Health precautions

JC5A is safe to use and apply when recommended precautions are observed.

Before using this product read and understand the Material Safety Data Sheet that provides information on health, physical and environmental hazards, handling precautions and first aid recommendations. An MSDS is available on request. Avoid over exposure. Obtain medical care in case of extreme exposure.

Storage life

The storage life of JC5A is 18 months when stored at temperatures between 5°C and 25ºC in the original unopened containers.
