Approvals and Conformities
NSN
5320-00-006-8532
Product Attributes
Country of Origin
United States
Shipping Weight
0.001 pounds
ECCN
EAR99
Color Family
Gold
Manufacturer P/N
MS20427M3C4
Schedule B Code
7508.90.0000
Pack Quantity
1
Series
MS20427
Color
Gold
Material
Monel

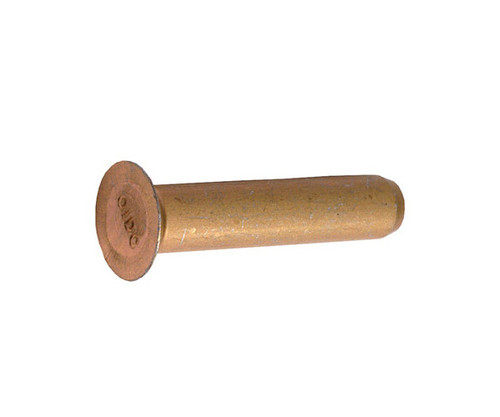

The Military Standard MS20427M3C4 is a solid rivet with a countersunk head. It has a Monel composition as well as a cadmium-plated surface treatment. It has the following specifications:Material: Nickel 400 (alloy) Fastener Length: .240 to .260 Head Style: Countersunk (flat/flush) Shank Diameter Range: .093 to .097 Shank Style: Straight Head Major Diameter (range): .155 to .190 Shear Strength (PSI): 49000 Countersink Angle Range (degrees): 98.5 to 101.5 Surface Treatment: Cadmium
*Unless otherwise noted, values are in inches
NOTE: MS20427 is superseded by NASM20427
