Country of Origin
United States
Shipping Weight
0.6 pounds
Manufacturer P/N
MS17986C411
Schedule B Code
7318.29.0000

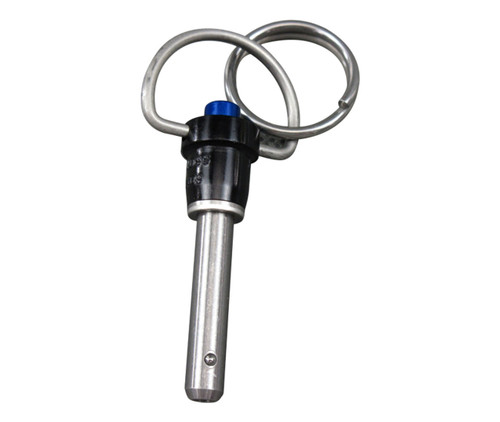

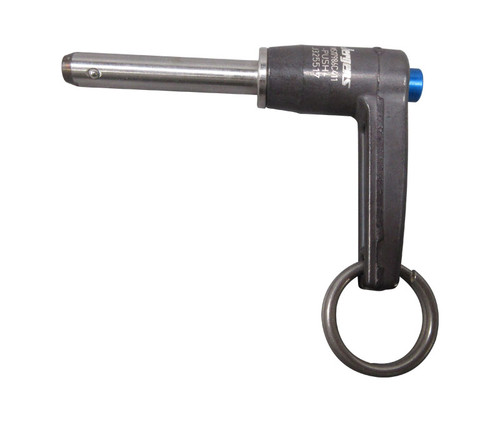

Shank Diameter: 0.2470 Inches Minimum And 0.2485 Inches Maximum Detent Quantity: 2 Actuation Method: Push Button Grip Length: 1.100 Inches Minimum And 1.120 Inches Maximum Actuation Type: Push Hardness Rating: 40.0 Rockwell C Minimum Spindle Hardness Rating: 40.0 Rockwell C Minimum Shank Shoulder To Head End Distance: 1.270 Inches Maximum Pin Center To Handle End Distance: 1.460 Inches Maximum Pin Attachment Type: Hook Or Ring Detent To Tapered End Distance: 0.260 Inches Minimum And 0.290 Inches Maximum Material: Steel Comp 630 Spindle Or Steel Comp 632 Spindle Material: Steel Comp 630 Shank Or Steel Comp 632 Shank Material Document And Classification: Ams 5643 Assn Std 1St Material Response Spindle Or Ams 5657 Assn Std 2Nd Material Response Spindle Material Document And Classification: Ams 5643 Assn Std 1St Material Response Shank Or Ams 5657 Assn Std 2Nd Material Response Shank Surface Treatment: Passivate Spindle Surface Treatment: Passivate Shank Surface Treatment Document And Classification: Qq-P-35 Fed Spec Single Treatment Response Spindle Surface Treatment Document And Classification: Qq-P-35 Fed Spec Single Treatment Response Shank Style Designator: L Handle
