Country of Origin
United States
Shipping Weight
0.1 pounds
Manufacturer P/N
AN743-12
Schedule B Code
8302.50.0000
Ship Dimensions
2 x 1 x 1 inches

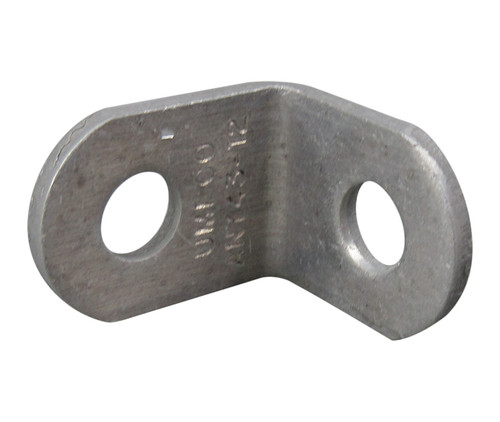

First Leg Length: 0.625 Inches Nominal Second Leg Length: 0.690 Inches Nominal Second Leg Width: 0.500 Inches Nominal First Leg Hole Diameter: 0.204 Inches Nominal Second Leg Hole Diameter: 0.204 Inches Nominal Second Leg Distance From Edge To Hole Center Along Width: 0.250 Inches Nominal Second Leg Distance From Edge To Hole Center Along Length: 0.250 Inches Nominal First Leg Thickness: 0.063 Inches Nominal Second Leg Thickness: 0.063 Inches Nominal First Leg Width: 0.500 Inches Nominal First Leg Distance From Edge To Hole Center Along Width: 0.250 Inches Nominal First Leg Distance From Edge To Hole Center Along Length: 0.250 Inches Nominal First Leg End Radius: 0.250 Inches Nominal Second Leg End Radius: 0.250 Inches Nominal First Leg Style: End Radius First Leg Hole Arrangement Style: One Hole Second Leg Style: End Radius Second Leg Hole Arrangement Style: One Hole Second Leg Relationship To First Leg: Identical First Leg Angle: 90.0 Degrees Nominal Material: Aluminum Alloy 2024 Material Document And Classification: QQ-A-250/5,Alclad T4 Fed Spec Single Material Response Style Designator: Angle
