Approvals and Conformities
MIL-SPEC#
MIL-A-46146 Type I Group II
Alternate PN#s
RTV-3145, RTV3145, 3145RTV, 3145-RTV, Momentive 3145
Product Attributes
Country of Origin
United States
Size
3 oz
Shipping Weight
0.6 pounds
ECCN
EAR99
Color Family
Gray
Manufacturer P/N
AS3145G
Schedule B Code
3214.10.0010
Pack Quantity
1
Ship Dimensions
7 x 3 x 3 inches
Size
3 oz Tube
Color
Gray

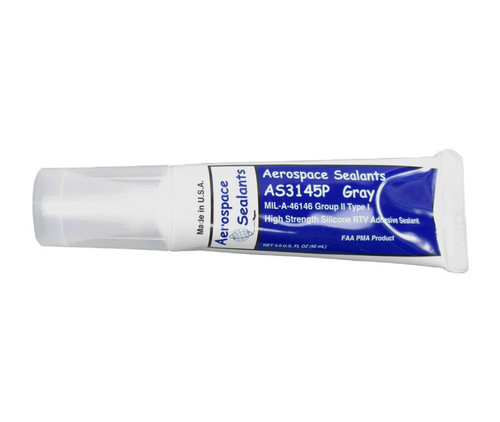

Aerospace Sealants AS3145 RTV Sealant is an FAA-approved replacement for Dow Corning RTV3145 High Strength Neutral Cure RTV Silicone Adhesive Sealant. It has been tested and conforms to requirements of MIL-A-46146 Type I Group II material.
A non-corrosive, high strength, neutral curing silicone RTV adhesive rubber, AS3145 is suitable for use on applications requiring fast adhesion and fast development of physical properties. It can be used in both manual and automatic dispensing equipment and, when applied to the substrate, allows handling of the bonded assmebly within an hour.
A non-corrosive, high strength, neutral curing silicone RTV adhesive rubber, AS3145 is suitable for use on applications requiring fast adhesion and fast development of physical properties. It can be used in both manual and automatic dispensing equipment and, when applied to the substrate, allows handling of the bonded assmebly within an hour.
Features
UNCURED
- Color: Gray
- Viscosity, cps: 500,000
- Specific Gravity: 1.12
- Consistency: Thixotropic paste
- Working Time, mins. @ R.T.: 8
- Tack Free Time, mins. @ R.T.: 15
- Application Rate, 90 PSI, g/min.: 300
- Cured - 72 hrs. @ R.T.
- Tensile Strength, PSI: 900
- Elongation, %: 800
- Durometer, Shore A: 50
- Peel Strength, PPI: 100
- Tear Strength, PLI: 200
- Dielectric Strength, V/mil: 790
- Dielectric Constant: 2.6
- Dissipation Factor: 0.0009
- Volume Resistivity, ohm·cm: 1.8 x 1015
- Brittle Point, °F (°C): -68 (-55)
- Maximum Continuous Operating Temperature, °F (°C): 500 (260)
- Maximum Continuous Intermittent Temperature, °F (°C): 600 (315)
- Thermal Conductivity Btu/hr/ft2, °F/ft: 0.17
- Coefficient of Expansion, in/in,°F: 7.8 x 10-7
