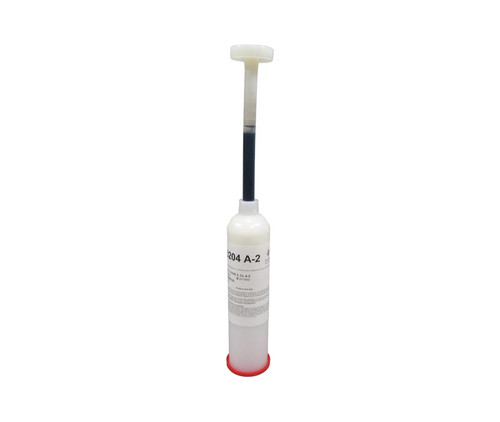

Flamemaster CS-3204 A-2 Gray AMS-S-8802 Type 2 Spec Integral Fuel Tank Sealant - 6 oz (3.5 fl oz) Cartridge Kit

Flamemaster CS-3204 A-2 Gray AMS-S-8802 Type 2 Spec Integral Fuel Tank Sealant - 6 oz (3.5 fl oz) Cartridge Kit
Our Part #: SGP106586
Manufacture Part #: CS3204A2-GRY-6OZ
Our Price: $30.29
Price Per Each

Bulk Shop & Save

  • 12 - 23 $29.84 ea.
  • 24 - 35 $29.40 ea.
  • 36 - 47 $28.98 ea.
  • 48 + $28.56 ea.
In-Stock: 92 Units available.
Need More? Current lead time is 38-41 business days.
Adding to cart… The item has been added

world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

Hazmat Order icon HAZMAT ORDERS
Safety Data Sheet download icon

SkyGeek Shelf-Life Policy

Warning: This product may contain a chemical known by the State of California to cause health issues. Details found here www.p65warnings.ca.gov

UN Number: UN1133

UN Class: 3

Flamemaster CS3204 A-2 is a fuel resistant sealant for use on integral fuel tanks and pressurized cabins as well as other areas subject to contact with aircraft fuels, lubricants, oils, water and/or weathering.

Flamemaster CS3204 A-2 is a two-part polysulfide base compound which cures at room temperature to a flexible, resilient rubber with excellent adhesion to aluminum, magnesium, titanium, steel, and numerous other materials. CS 3204 is designed to withstand the attack of sulfur compounds that are present in jet fuels. When mixed, CS 3204 Class A is a self leveling liquid. CS 3204 Class B is a thixotropic paste that will not flow or sag on vertical or overhead surfaces.

Approvals/References/Specification

  • SAE Specification: AMS-S-8802 Type II Class A-2
  • US Military Specification: MIL-S-8802 Type II Class A-2
  • Features

    Typical Properties MIS-31868C CS 3204 WT20
    Color:
    Base Compound Aluminum
    Curing Agent Black
    Mixed Aluminum
    Mixing Ratio:
    Weight 7.8/10:100 10/100
    Volume N/A 8.3/100
    Non Volatile 75% 80%
    Viscosity Mixed 100-180 PS.a 116 PS.a

    Homogeneity

    11.4% ± 2% 12.5%
    Extrudability Extrudable Pass
    Application Life 5 grams min. 90 grams
    Squeeze Out Hardness (Shore A) N/A

    20 hours

    120 Hrs. @24C ± 1C 35 (min.)

    50 (min.)

    28 days @24C ± 1C 50 (min.) 60 (min.)
    Shelf Life @ 28C± 1C 6 months 6 months
    Flash Point N/A + 15C

    SURFACE PREPARATION

    To obtain good adhesion, remove all traces of oil, wax, grease, dirt, or other contamination. Working in small area segments, wipe the surface using a clean rag doused in an oil free solvent. Before the solvent evaporates, wipe the surface dry with a second clean rag. Maintain a clean solvent supply by pouring the solvent on the washing cloth. CS 3204 will adhere tenaciously to most substrates providing the surface to be sealed is clean and sound.

    MIXING INSTRUCTIONS

    CS 3204 Parts A and B are carefully matched at the time of manufacture to provide optimum performance when cured. Care should be taken to assure that Parts A and B are combined as recommended on the container label. When mixing pre-measured kits do not thin CS 3204 with solvents. Prior to combining with the Part A component, stir the Part B component until the contents of the container are uniform. Place all of the B component into the Part A container and continue stirring until a uniform gray color is achieved. There should be no white or black streaks in the properly blended material. Periodically scrape the sides and bottom of the container as well as the mixing tool to assure proper mixing. When using a mechanical mixer, avoid high speeds since the heat generated will reduce the application time of the mixed CS 3204. Violent stirring will also entrap air in the cured sealant.

    When mixing materials packaged in bulk or when only a small quantity is required, stir 10 parts by weight of the Part B component into 100 parts by weight of the Part A component. Be sure to stir the Part B prior to weighing out the required amount.

    CURE

    Specified application and cure schedules are based on the standard conditions of 77°F and 50% relative humidity. Increased temperature and relative humidity will reduce the work life and speed up the cure while reduced temperatures and relative humidity will extend the work life and slow the cure. Cure may be accelerated by heating up to 120°F. However care must be exercised to avoid the entrapment of solvent when heat is applied.

    Downloads

    download icon Safety Data Sheet

    Country of Origin
    United States
    Size
    6 oz
    Shipping Weight
    0.75 pounds
    ECCN
    EAR99
    Color Family
    Gray
    Manufacturer P/N
    CS-3204 Class A-2
    Schedule B Code
    3506.91.0000
    Pack Quantity
    1
    Ship Dimensions
    12 x 2 x 2 inches
    Size
    6 oz (3.5 fl oz) Cartridge Kit
    Spec
    AMS-S-8802 Type 2
    Class
    A-2
    Color
    Gray
    NSN
    8030-00-753-5009
    SAE Spec#
    AMS-S-8802 Type 2
