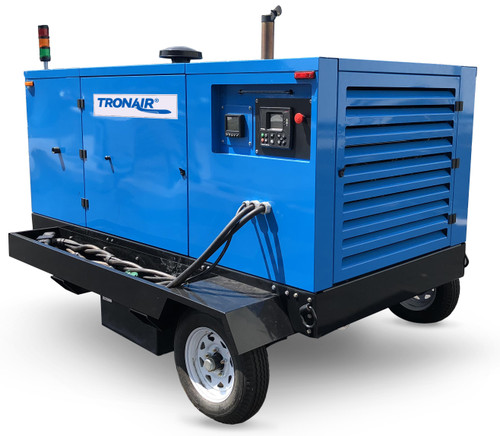

Tronair® 11-4290-0000 Blue 400 Hz AC, 90kVA, 28.5 VDC Diesel GPU (CE)

The second output is available providing 28.5V DC power up to 600 amps continuous for aircraft servicing and 2,000 amps peak for starting.

The award-winning Doosan diesel engine with industry leading three-year warranty has electronic controls for more precise control over engine performance. This GPU requires no diesel particulate filter, reducing maintenance interval requirements and improving fuel economy.

SCR regulation and RC circuit ripple filtration ensure a finely tuned unit cable of operating with the most sensitive of aircraft. A large Murphy Digital Controller/Display allows the operator to monitor engine parameters in addition to fault codes. An aircraft end cable interlock circuit alerts the operator to a poorly connected cable. End of cable voltage sensing and output voltage drop compensation ensures full power is provided to the aircraft. A large 35-gallon fuel tank allows for 8 or more hours of run time at the rated load.
