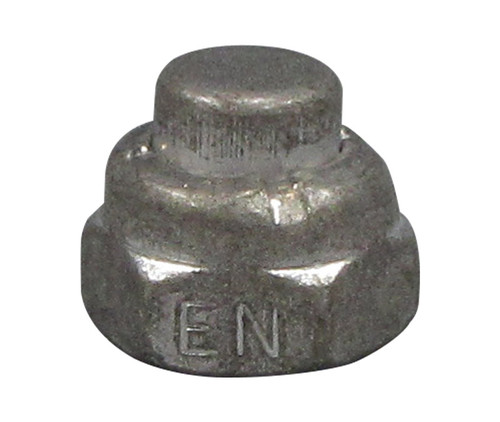

Maclean-ESNA® 22K1-02 Nut, Self-Locking, Cap

Our Part #: SGP39955
Manufacture Part #: 22K1-02
Our Price: $3.47
Price Per Each

Bulk Shop & Save

  • 25 - 49 $3.35 ea.
  • 50 - 74 $3.23 ea.
  • 75 - 99 $3.12 ea.
  • 100 + $3.02 ea.

world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

Approvals and Conformities

Approvals and Conformities

NSN
5310-00-222-4246
Piper PN/Spec#
406-702

Product Attributes

Country of Origin
United States
Shipping Weight
0.001 pounds
ECCN
EAR99
Manufacturer P/N
22K1-02
Schedule B Code
7318.16.0000
Pack Quantity
1
  • Thread Class: 3B
  • Thread Direction: Right-Hand
  • Locking Feature: Prevailing Torque With Nonmetallic Insert
  • Nut Style: Cap
  • Nut Height: 0.337 Inches Nominal
  • Width Across Flats: 0.365 Inches Minimum And 0.377 Inches Maximum
  • Temp Rating: 250.0 Deg Fahrenheit Nominal
  • Thread Series: Unf
  • Thread Quantity Per Inch: 32
  • Nominal Thread Size: 0.190 Inches
  • Bearing Surface Type: Chamfered
  • Material: Plastic Polyamide Locking Insert
  • Material: Steel Overall Except Insert
  • Surface Treatment: Cadmium Overall Except Insert
  • Surface Treatment Document And Classification: Qq-P-416,Ty 1,Cl 3 Fed Spec Single Treatment Response Overall Except Insert
