Country of Origin
United States
Shipping Weight
0.001 pounds
Manufacturer P/N

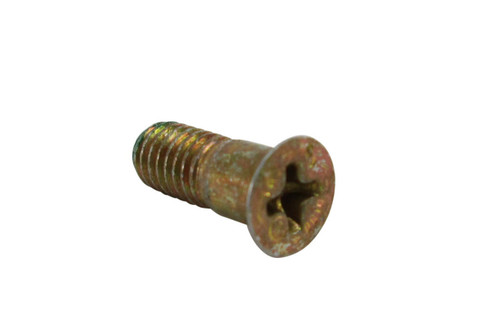

NAS8703U5
Schedule B Code
7318.15.9000
Thread Class: 3A Thread Direction: Right-Hand Thread Length: 0.323 Inches Nominal Fastener Length: 0.620 Inches Minimum And 0.650 Inches Maximum Head Style: Flat Countersunk Head Diameter: 0.266 Inches Minimum And 0.303 Inches Maximum Grip Diameter: 0.1885 Inches Minimum And 0.1895 Inches Maximum Internal Drive Style: Cross Recess Type 1 Nominal Thread Diameter: 0.190 Inches Grip Length: 0.178 Inches Minimum And 0.198 Inches Maximum Thread Quantity Per Inch: 32 Minimum Tensile Strength: 180000 Pounds Per Square Inch Countersink Angle: 99.0 Degrees Minimum And 101.0 Degrees Maximum Surface Finish: 32.0 Microinches Grip Surface Finish: 32.0 Microinches Bearing Surface Of Head Material: Iron Alloy 660 Overall Material Document And Classification: Ams5731 Assn Std Single Material Response Overall Or Ams5737 Assn Std Single Material Response Overall Surface Treatment: Passivate Overall Thread Series Designator: Unjc Specification/Standard Data: 80205-Nas8703 Professional/Industrial Association Standard
