Country of Origin
United States
Shipping Weight
0.05 pounds
Manufacturer P/N
12TS15-3
Schedule B Code
8536.50.9065

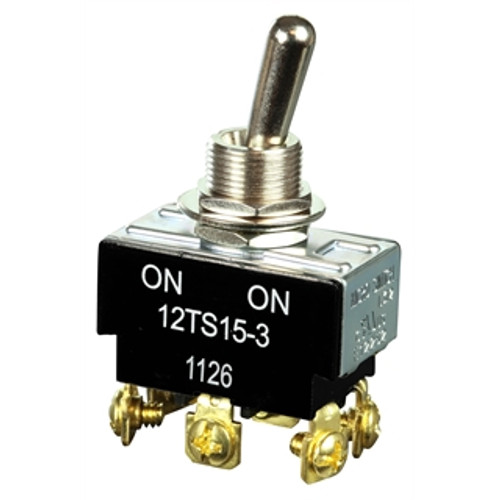

Body Style : Bushing Mount Bushing Length : 0.470 Inches Nominal Body Length : 1.310 Inches Nominal Body Width : 0.750 Inches Nominal Switch Actuator Quantity : 1 Actuator Style : Round Actuator Height : 0.690 Inches Nominal Actuator Position-Action Relationship : Center Position Maintained And Left Position Maintained And Right Position Maintained Maximum Voltage Rating In Volts : 250.0 Ac Mounting Surface To Terminal End Distance : 1.062 Inches Nominal Inclosure Type : Fully Inclosed Thread Quantity Per Inch : 32 Nominal Thread Size : 0.469 Inches Nonpile-Up Contact Arrangement : 2 Pole, Single Throw, Both Positions Maintained Single Switch Unit Contact Load Current Rating At Maximum Rated Voltage : 15.000 Amperes Resistive Ac Thread Series Designator : Uns Terminal Type and Quantity : 6 Screw
