Flamemaster CS-3201 B-2 Tan AMS-S-7124B (no QPL) Spec Integral Fuel Tank and Cabin Sealant - Quart (24 fl oz) Can Kit
PART #:
SGP106575
MFR PART #:
CS3201B2TANQT
Regular Price:
Our Price:
Our Price:
Sale Price:
$579.02
Adding to cart… The item has been added
Adding to cart… The item has been added

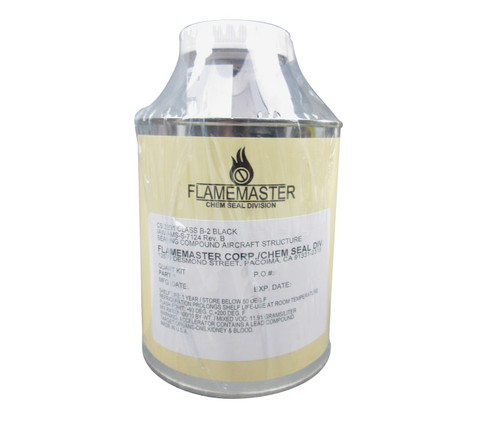

Flamemaster CS 3201 B-2 Black AMS-S-7124B (no QPL) Spec Integral Fuel Tank & Cabin Sealant - Quart (24 fl oz) Can Kit
PART #:
SGP106576
MFR PART #:
CS3201B2QTBLK
Regular Price:
Our Price:
Our Price:
Sale Price:
$579.02
Adding to cart… The item has been added
Adding to cart… The item has been added
Approvals and Conformities
SAE Spec#
AMS-S-7124 Rev. B (no QPL)
Product Attributes
Country of Origin
United States
Size
Quart
Shipping Weight
2.65 pounds
ECCN
EAR99
Color Family
Black
Manufacturer P/N
CS-3201 Class B-2
Schedule B Code
3506.91.0000
Pack Quantity
1
Size
Quart (24 fl oz) Can Kit
Spec
AMS-S-7124B (no QPL)
Class
B-2
Color
Black
This two-part, polysulfide based compound cures at room temperature to a flexible, resilient rubber with excellent adhesion to aluminum, titanium, stainless steel, steel, magnesium, and other materials. Proper mixing is assured by the contrasting colors of the two parts. MCS 3201, Class B is a thixotropic paste which is easily applied with an extrusion gun or spatula, but will not flow from vertical or overhead surfaces. The cured sealant is resistant to aircraft fuels, lubricants, oils, water, and weather, and remains flexible at low temperatures.
Base Compound Color: WhiteCuring Agent Color: Brown
Color of Mixed Compound: Tan
Mixing Ratio (by weight): 100:10
Mixing Ratio (by volume): 100:7.5
Non Volatile Materal: 98%
Viscosity Base (Brookfield Spindle #7 @ 2 RPM): 11,000 poises
Application Time (Tack Free): 6 hrs.
Application Time (Cure 30REX): 30 hrs.
Specific Gravity: 1.45
Hardness Shore A: 30-50
Aluminum (bare): 45 lbs./in - 100%
Corrosion Resistance: Excellent
Resistance to Hydrocarbons: (Mil-S-3136 Type III Fuel) Excellent
Resistance to Fluids: Excellent resistance to water, alcohol, petroleum and synthetic lubricating oils, and petroleum based hydraulic oils
Radiation Resistance: 3 x 10^7 Roentgens - less than 25% change in tensile strength and elongation
Note: Values obtained from AMS7124 (withdrawn). Test protocol AS5127. All values observed are typical and the user should rely on their on testing as for suitability of purpose
