Approvals and Conformities
Product Attributes
Country of Origin
United States
Shipping Weight
0.41 pounds
ECCN
7A994
Manufacturer P/N
CI-310-22
Schedule B Code
9803.20.0000
Pack Quantity
1

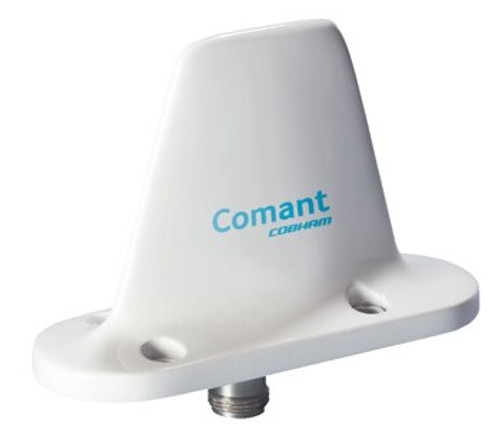

L Band / UHF blade antenna designed for high performance aircraft.
Low profile, light weight antenna and is packaged in a molded body with metal mounting base to ensure stable environmental performance and resistance to vibration, rain erosion and cleaning solvents.
Features vertical/omnidirectional pattern, wide band/high efficiency electrical performance and DC grounding for lightning protection.
Low profile, light weight antenna and is packaged in a molded body with metal mounting base to ensure stable environmental performance and resistance to vibration, rain erosion and cleaning solvents.
Features vertical/omnidirectional pattern, wide band/high efficiency electrical performance and DC grounding for lightning protection.
Electrical | |
Frequency | 806 to 960 MHz 1030 to 1090 MHz |
VSWR | 1.75:1 @ 806 to 960 MHz 1.5:1 @ 1030 to 1090 MHz |
Polarization | Vertical |
Radiation Pattern | Equivalent of l / 4 Stub |
Impedance | 50 Ohms |
Power RF | 100 Watts Maximum Average |
Mechanical | |
Weight | 0.32 lb. Maximum |
Height | 3.25 in. Maximum |
Material | High Density Polyurethane |
Gasket | 70456 "O" Ring |
Finish | White Polyurethane Enamel (Standard) |
Connector | (see above P/N's to order the choice of connector) |
Environmental | |
Temperature | -55°C to +70°C |
Altitude | 50,000 ft. |
Air Speed | 600 Knots TAS @ 25,000 ft. |
Federal Specifications | |
RTCA Environmental | DO 160C |
Environmental Category | [A2F2]-AC[CLMY]XRFXXSXXXXXXXXX |
FAA TSO | C74c Class 1A |
RTCA MOPS | DO-144 |
�
