Approvals and Conformities
NSN
5305-00-702-7270
MIL-SPEC#
AN525
Product Attributes
Country of Origin
United States
Size
10-32 x 1/2"
Shipping Weight
0.03 pounds
ECCN
EAR99
Manufacturer P/N
AN525D10R8
Schedule B Code
7318.15.2000
Pack Quantity
10
Series
AN525
Thread Size
8-32"
Length
1/2"
Grip
1/8"
Material
Alloy Steel

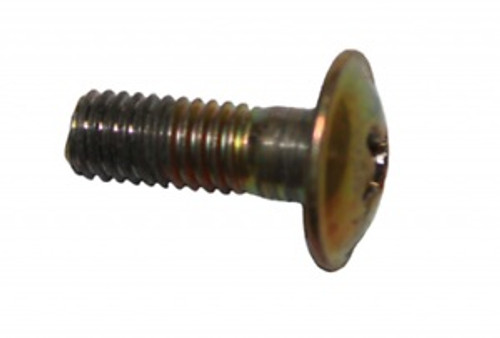

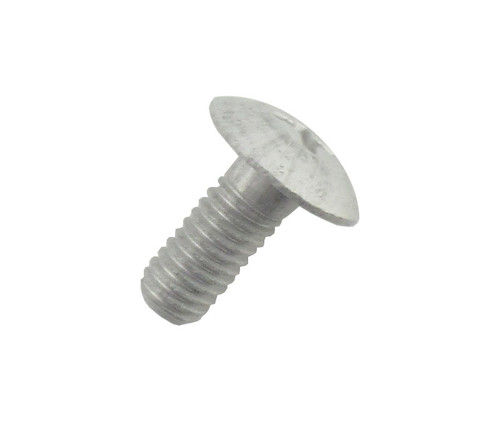

As the name indicates, AN525D10R8 is a machine screw crafted with the Air Force-Navy in mind. It has a washer head and is made of aluminum. See below for more details.
∗Unless otherwise noted, values are in inches - Material: Aluminum alloy 2024
- Material Document and Classification: QQ-A-225/6
- Surface Treatment: Anodize
- Nominal Thread Diameter .190
- Thread Quantity (per inch): 32
- Thread Class: 3A
- Thread Direction: Right-hand
- Minimum Thread Length: .500
- Nominal Fastener Length: .500
- Head Style: C29 Binding
- Nominal Head Diameter: .437
- Nominal Head Height: .094
- Internal Drive Style: D1 Cross recess, Type 1
- Thread Series Designator: UNF
- Locking Feature: Pellet threads
