Approvals and Conformities
MIL-SPEC#
MS25361-70
Alternate PN#s
MS25361-70
Product Attributes
Country of Origin
United States
Shipping Weight
0.05 pounds
ECCN
9A991.d
Manufacturer P/N
6752-100-70
Schedule B Code
8536.20.0040
Pack Quantity
1

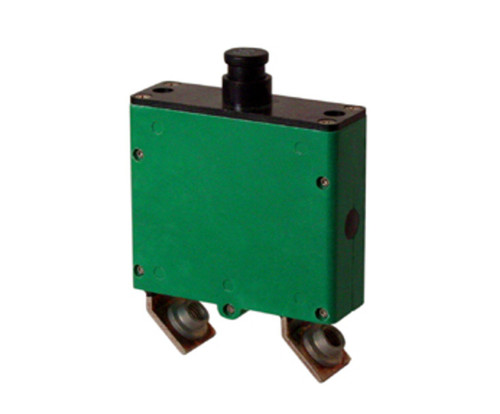

Klixon 6752-100 series thermal-magnetic circuit breakers are designed and manufactured to meet stringent military standards with the reliability of the 6752 design. The 6752-100 is similar to the 6752-12 in size, and includes current ratings ranging from 50 to 100 amps.
The higher interrupting capacity, vibration resistance and longer cycling life of the 6752-100 series exceed previous military standards. In addition, the 6752-100 series provide ambient compensation, fault coordination of all ratings an option for auxiliary circuits.
mbient Temperature Compensation
The 6752-100 series circuit breakers maintain their performance capabilities by means of a thermal compensator in the temperature range of -40°C to 70°C.
igh Short Circuit Capacity
A deionizing grid and magnetic assist enable the 6752-100 series to successfully interrupt four fault currents of 6,000 amperes - two at sea level and two at 60,000 feet - on either a 120 VAC, 400 Hz system or a 30 VDC system.
|
