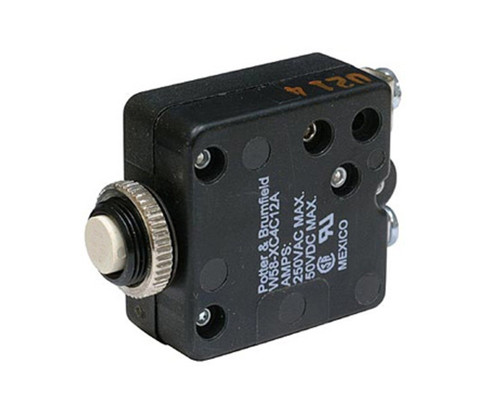

Potter & Brumfield W58-XC4C12-A30 Push to Reset Thermal Circuit Breaker - 30 AMP

The W58 Series is UL 1077 Recognized as Supplementary Protectors, File E69543, and CSA Certified as Appliance Component Protectors, File LR15734.

Product Type Features:

• Product Type = Circuit Breaker

• Actuator Style = Push to Reset

• Button Color = White with Black Rate Marking, Red Trip Band

• Termination Type = 6-32 Screws 90° (Screws Installed)

Electrical Characteristics:

• Current Rating (A) = 30

• Operating Voltage, Max. = 250 VAC

Body Related Features:

• Series = W58

Contact Related Features:

• Number of Poles = 1

• Trip Time at 200% = 6 to 30 Seconds

• Interrupt Capacity = 2,000 A @ 50 VDC or 1,000 A @ 250 VAC

• Mounting Options = Knurled Nut/Lockwasher

• Mounting Bushing = 15/32" x .300" [7.62 mm] Long, Black

Configuration Related Features:

• Circuit Function = Series Trip
